Co-Processor for the Apple II

The missing
Link.

Your Apple II has come a long way: accelerators, storage by the gigabyte, RAM disks, and sharp modern video. The one thing none of it can fix is the modern web, locked behind TLS that no 6502 or 65816 can reasonably run.

CoGS is the key. A single slot card that does the impossible parts on the card: TLS, HTTPS, JSON, true random, and hardware hashing, handing your Apple II plaintext. The machine stays in charge of everything else. It is still your Apple. It can just finally talk to the world.

And the network is a disk library

Drop the card in a slot, power on, and its own config ROM comes up. You join Wi-Fi, browse a catalog of over 500 disk images right on the machine (Total Replay rides along with 400+ more 8-bit titles), and hit Return. Your Apple boots it, streaming over the internet, block by block, with nothing installed and no local storage at all.

From power-on to running essentially any published Apple II app ever written is about one minute: boot, join Wi-Fi, browse, Return — and it RUNS. One card, any Apple II: the same board drops into a slot in the ][+, the //e, or the IIGS.

See what it does Boot off the internet The code & spec

Ethernet/Wi-Fi/TLS/SHA‑256/TRNG/Clock/Network disk

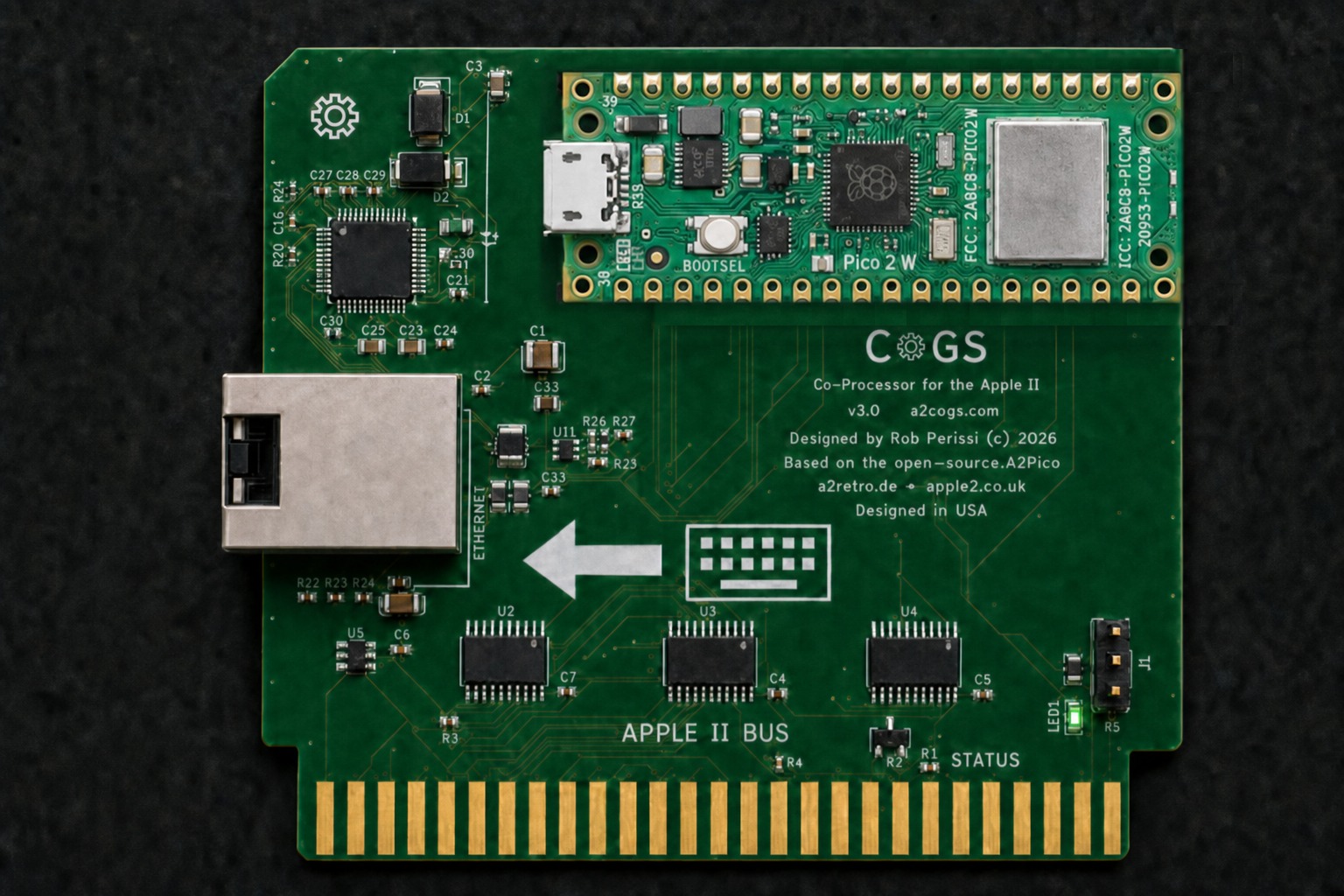

CoGS Rev 3.0 board render: green PCB with gold edge connector, a Raspberry Pi Pico 2 W seated across the top socket, onboard W5500 Ethernet with a silver RJ45 jack at the rear, three bus transceivers over the Apple II bus, and a status LED. Designed by Rob Perissi, built on the open-source A2Pico carrier by Glenn Jones, Oliver Schmidt, and Ralle Palaveev.

CoGS Rev 3.0 Prototype Rendering

Power on, browse 515 boot-tested disks from the card's own ROM, hit Return — it runs.

The gap

The hard upgrades are solved. The modern web still isn't slot-native.

Already solved on the Apple II

  • Acceleration many times faster than stock
  • Storage solid-state, instant, silent
  • Memory cheap RAM and huge RAM disks
  • Display clean output to a modern panel
  • Sound sound cards well past the beep

Each upgrade follows one quiet rule: more capable, still itself.

The part still missing

The modern secure internet, in a slot.

Every useful API is HTTPS now: certificate chains, key exchange, X.509 parsing, a handshake state machine — then JSON on top. That is not a “needs more megahertz” problem; it is months of fragile cryptography with no business on a 1 MHz to 2.8 MHz CPU. It has been solved before, and solved well: purpose-built hardware has terminated TLS on the device for vintage machines for years, and offloading the hard cryptography is exactly the right call.

CoGS makes that offload a slot-native co-processor — purpose-built for the Apple II bus, with the speed, low latency, and on-card co-processing only a slot makes possible.

What it does

A network card and a co-processor toolbox.

Every service is a job the host genuinely cannot do, or would be absurd to ask of it. Everything else stays on the Apple II.

Secure web

Your Apple II talks to real HTTPS APIs directly. The card runs the whole TLS handshake and verifies the certificate; the host only ever sees plaintext.

Desk-verified

JSON, without parsing JSON

Ask for choices[0].message.content and the card returns just that value out of a whole API response. A 64 KB machine never touches a parser.

Desk-verified

True random numbers

Real entropy from hardware silicon. No Apple II ever shipped with a hardware RNG. Now yours has one.

Desk-verified

Hardware hashing

Single and double SHA‑256 in dedicated silicon, for the cost of a few register writes. Checked byte-for-byte against the reference.

Desk-verified

A real hardware miner

Hand the card a block header once; it grinds nonces locally at roughly 2400× a stock GS and returns the winner. Your GS keeps running the protocol and the UI.

Desk-verified

Your modern NIC

Wi-Fi out of the box, with wired RJ45 on the custom card coming soon — plug and play. In bridge mode your Apple II gets its own IP and is a real host on the LAN, so Marinetti and IP65 software just works, now with co-processing behind it, carrying your Apple into the 21st century.

Bridge verified on real hardware

Boot off the network

Give the card a link to a disk image — on your own network or anywhere on the internet — and the Apple II sees a real drive: it boots from it, reads it, and writes it back. No driver installed on the host, nothing on a local card. The card speaks SmartPort and ProDOS block right out of ROM.

Streaming on real hardware

A clock

The card runs NTP for secure time anyway, so it can set your machine's clock. For everyone whose No-Slot Clock battery died decades ago.

Time synced

Card vitals

The card reports its own health: on-chip temperature, the slot's +5V rail (a free read on your host power supply), uptime, a unique serial, and why it last booted. It answers even with Wi-Fi down, and shows up live in the desktop control panels.

Working

It updates itself

About / Update checks a2cogs.com right from the machine, lists releases with dates and build notes, and the card downloads, verifies, and flashes the one you pick. No cable, no other computer, ever.

New in firmware 0.73+

Native to the machine

It feels like part of your Apple. Because it is.

Hardware is only half of it. CoGS is built to disappear into the Apple II you already know — configured from the desktop, and wired into the network stack the community already uses.

CoGS Control Panel on the GS

Set up and watch the card right from the machine, no serial cable and no guesswork. One on-card configuration, three faces, so a change in one shows up in the others — in whichever place suits the moment:

  • Control Panel (CDev) — the first-class config home, right next to TCP/IP and Time. Scan for nearby networks and pick one, join Wi-Fi, run a live connection test, set your time zone and auto-sync the clock, and see your network at a glance (SSID, IP, subnet, gateway, DNS, MAC).
  • Status (NDA) — a thin live-status window in the Apple menu that floats over any app: link, IP, signal, the full network read-out, and the clock, updating as you watch.

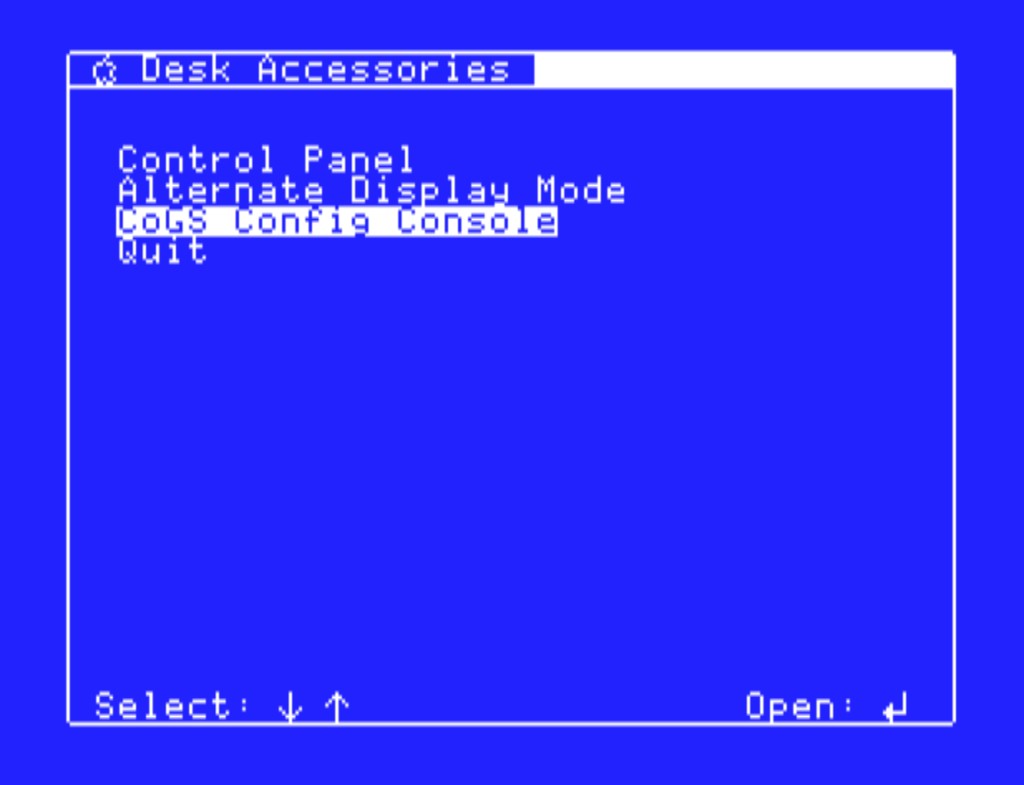

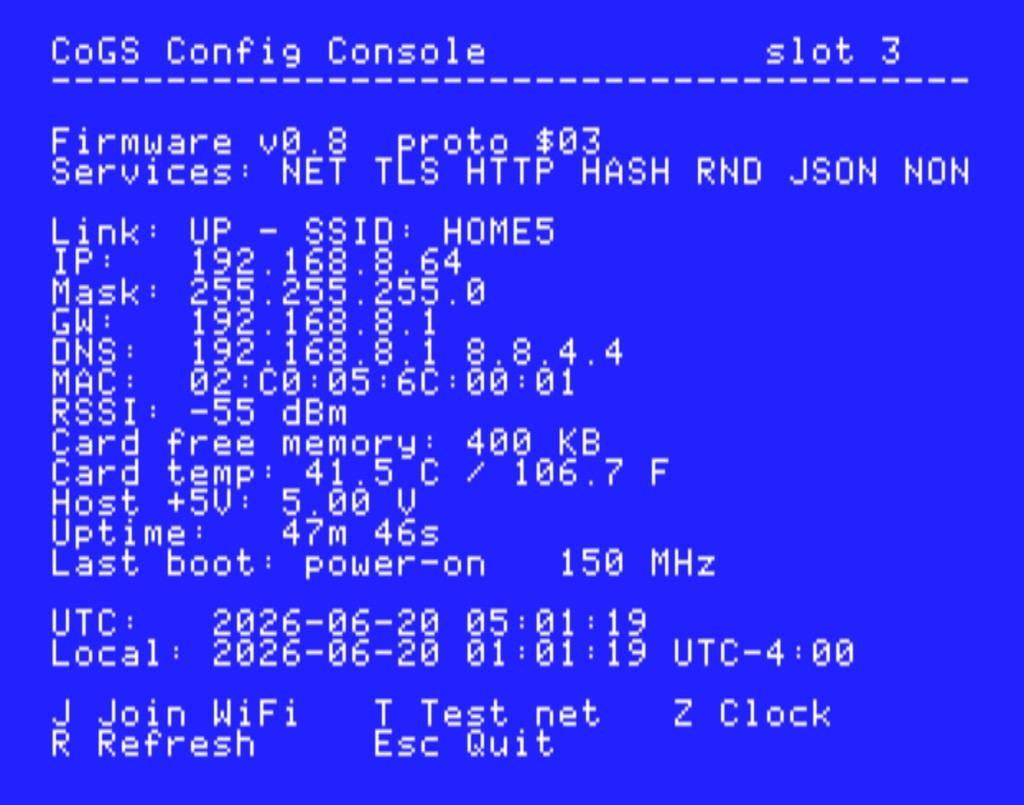

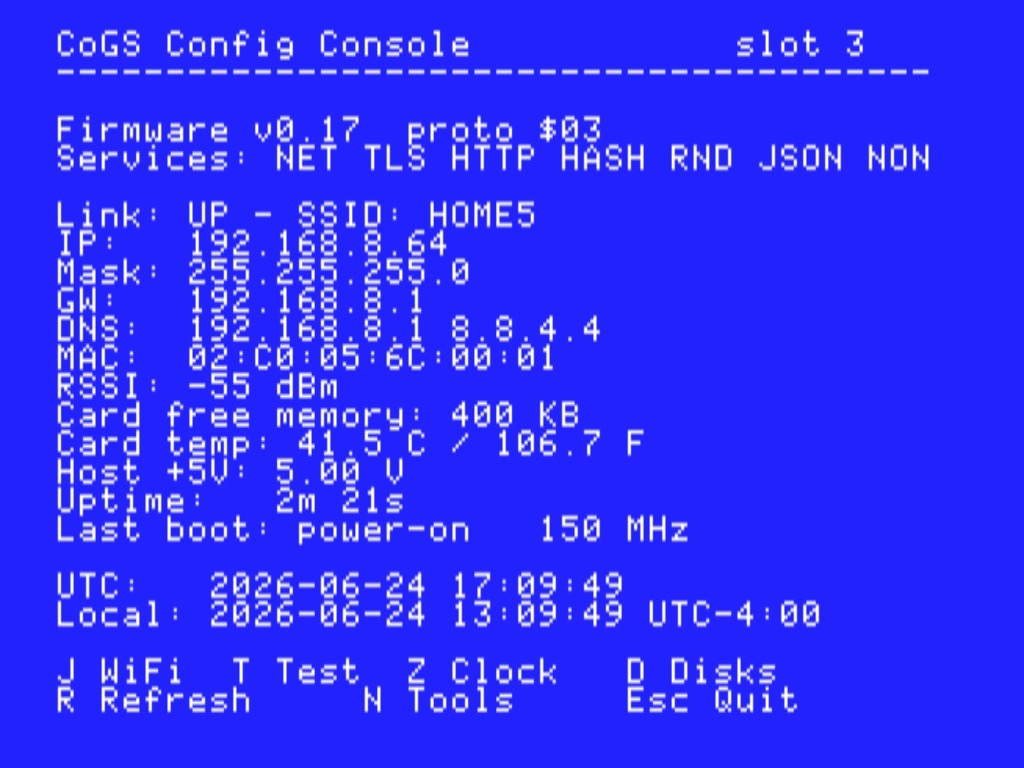

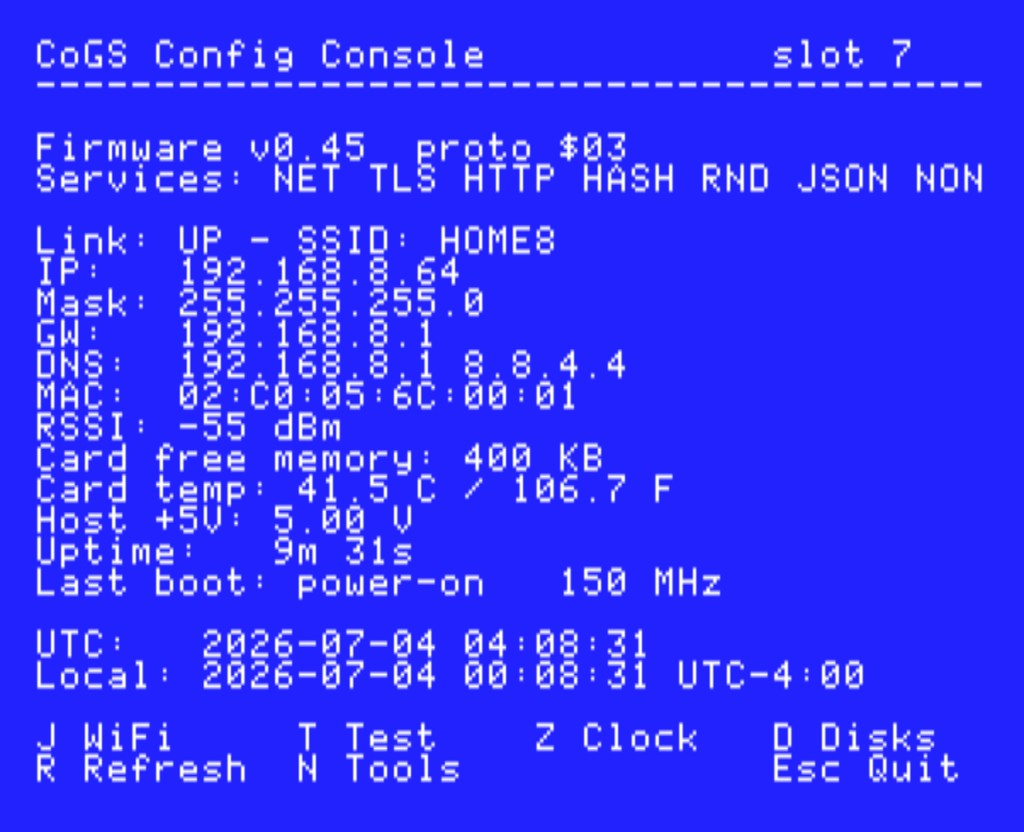

  • Console (unified ROM/CDA) — the bare-metal rescue tool. At power-on it is the card's boot ROM; on a GS/OS boot the card installs the same console as a Classic Desk Accessory automatically, reachable with Ctrl‑⌘‑Esc even on a half-booted machine. Nothing to install on the disk. Scan and pick a network, bring Wi-Fi up, run the network tools, set the clock, and browse and mount network disks when nothing else will.

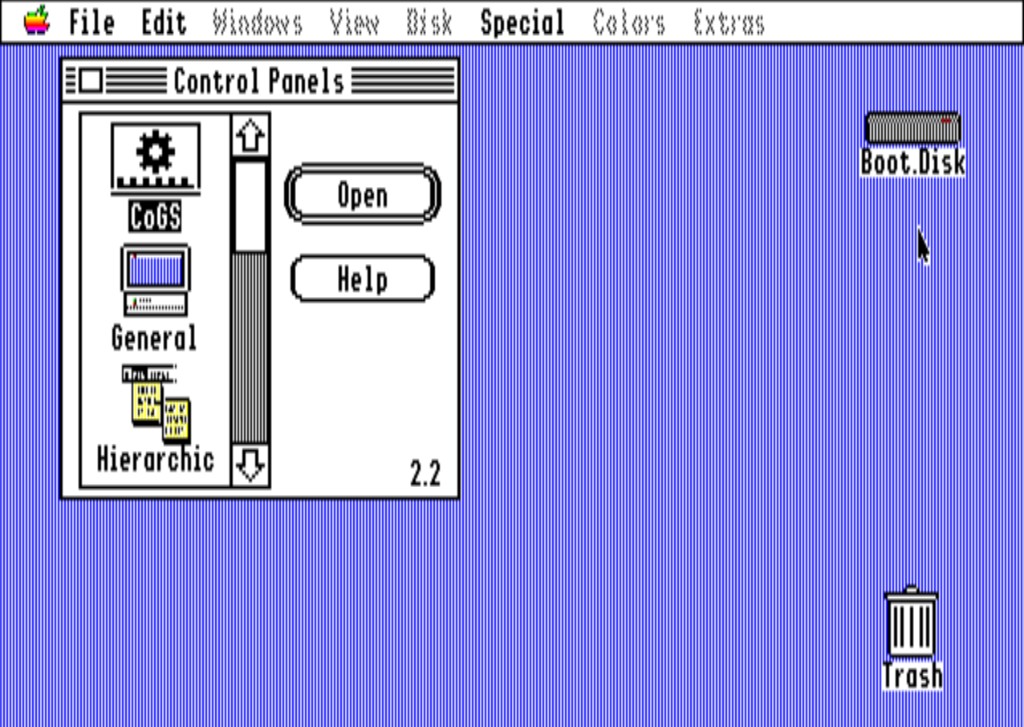

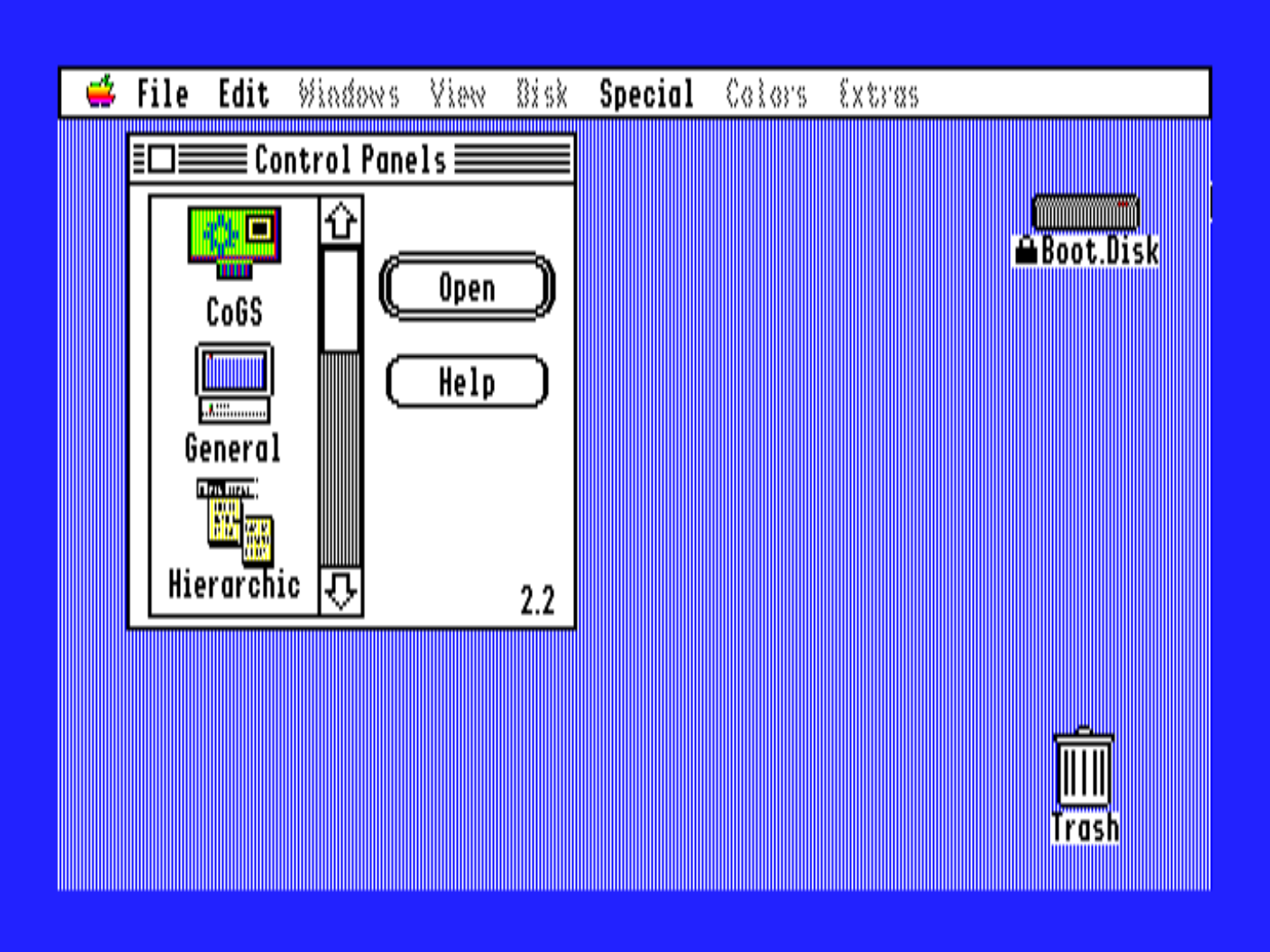

The CoGS control panel sitting in the GS Control Panels list

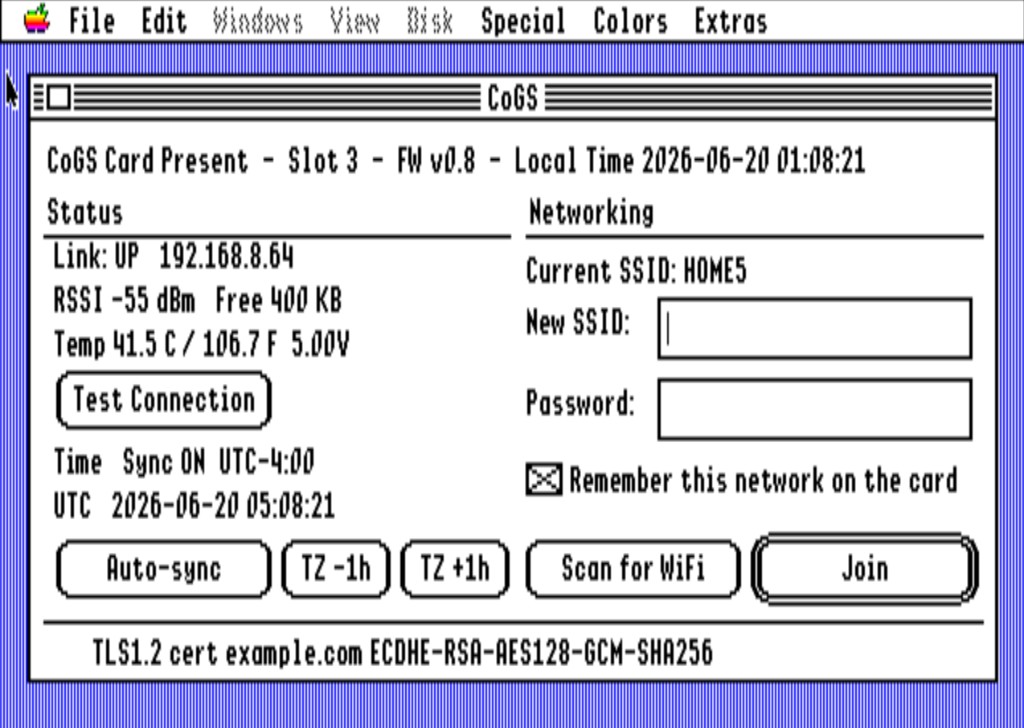

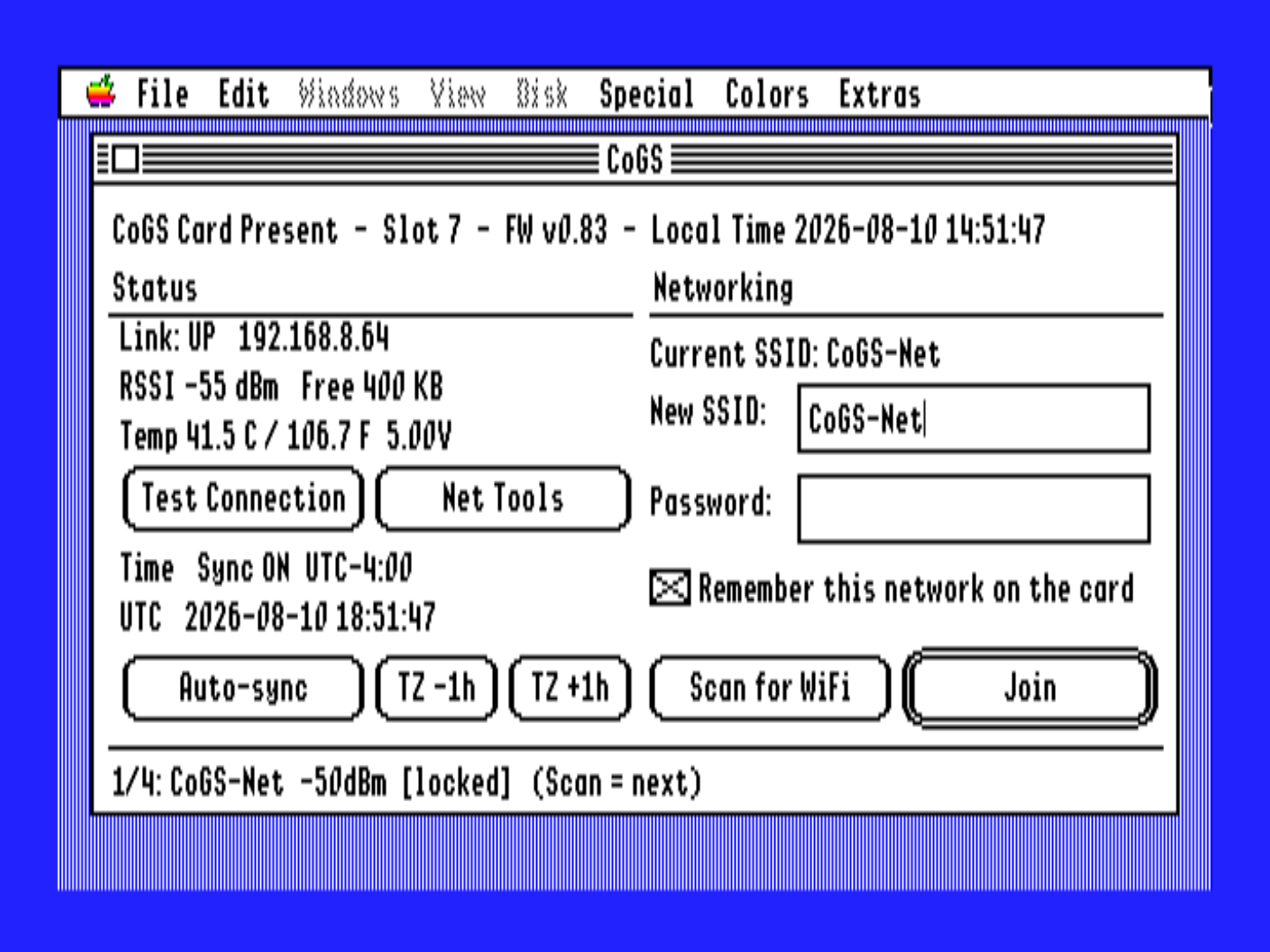

CoGS Control Panel (CDev): status, networking, clock, and Wi-Fi join

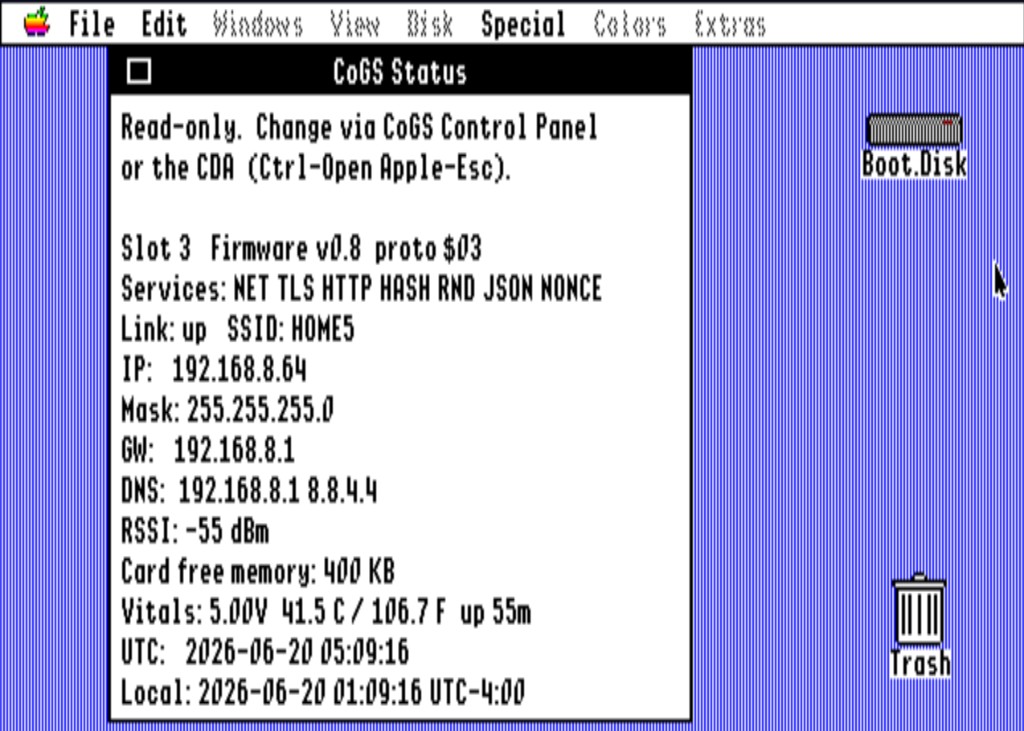

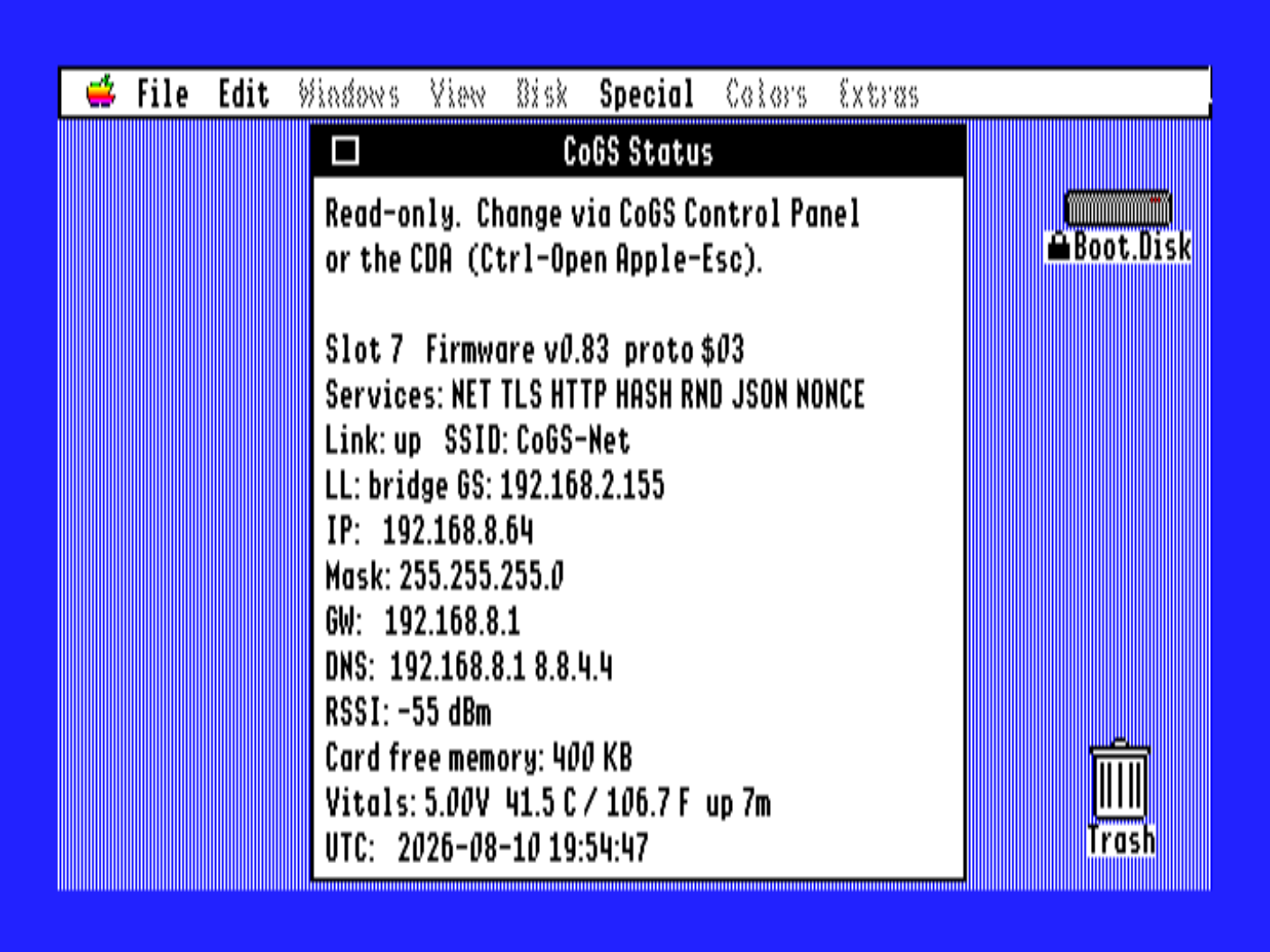

CoGS Status (NDA): live link, bridge and GS IP, card vitals, and clock floating over the desktop

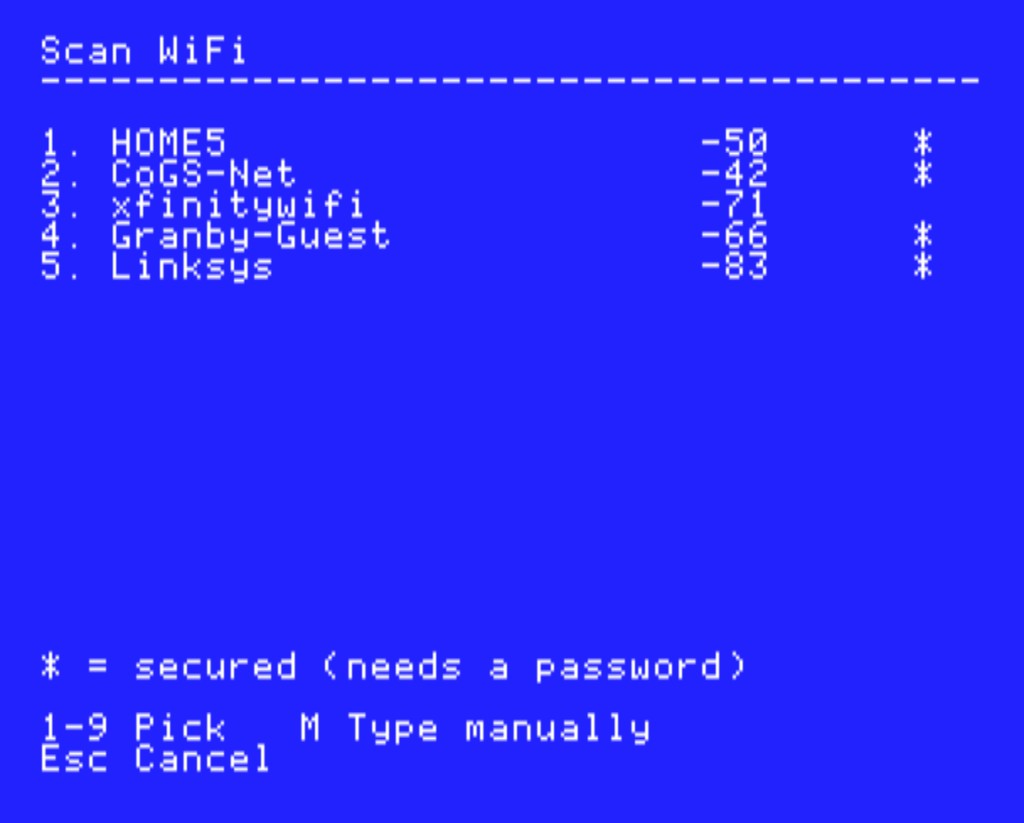

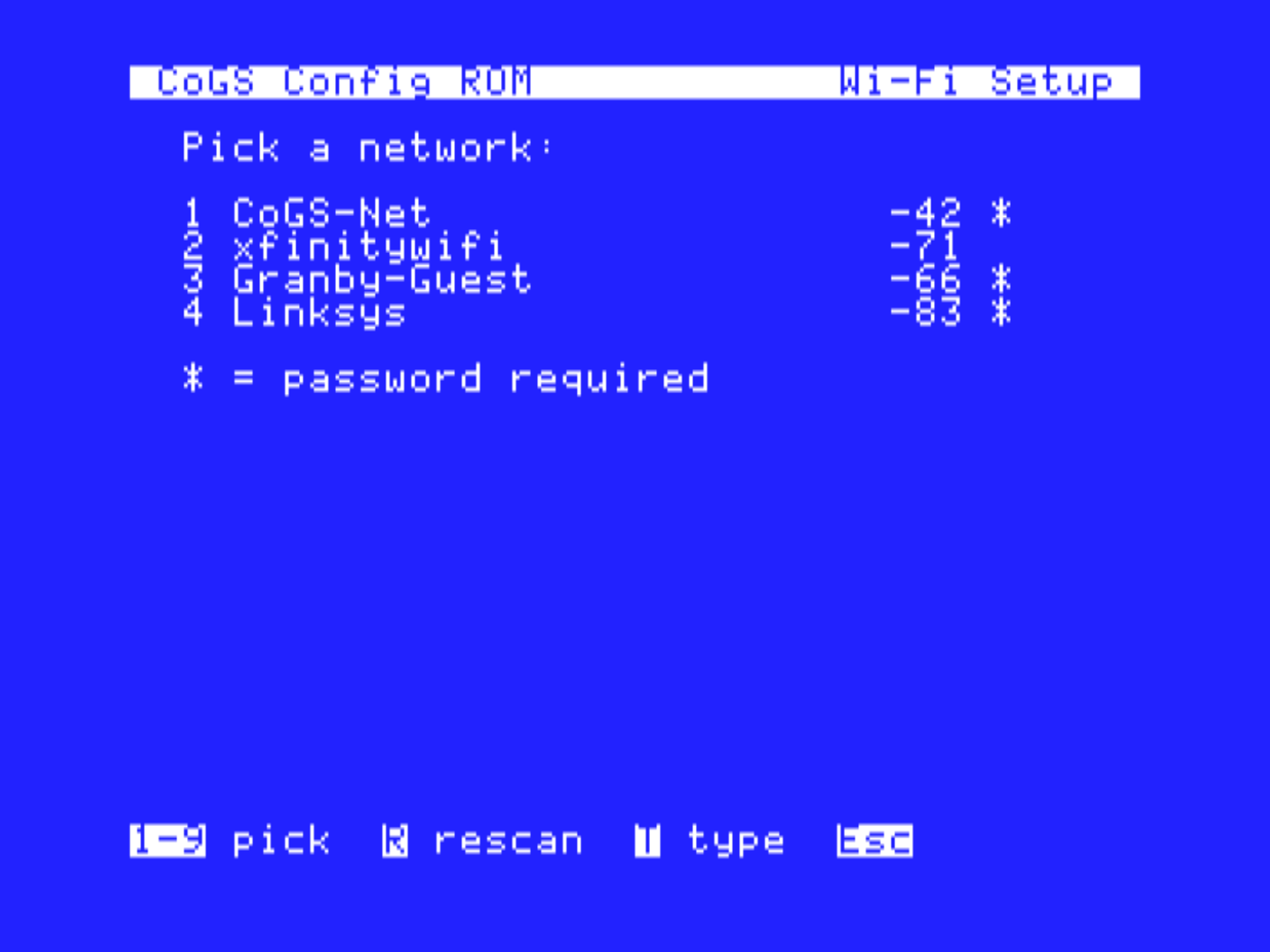

Wi-Fi scan in the unified ROM/CDA console: nearby networks with signal bars, pick one and type the password

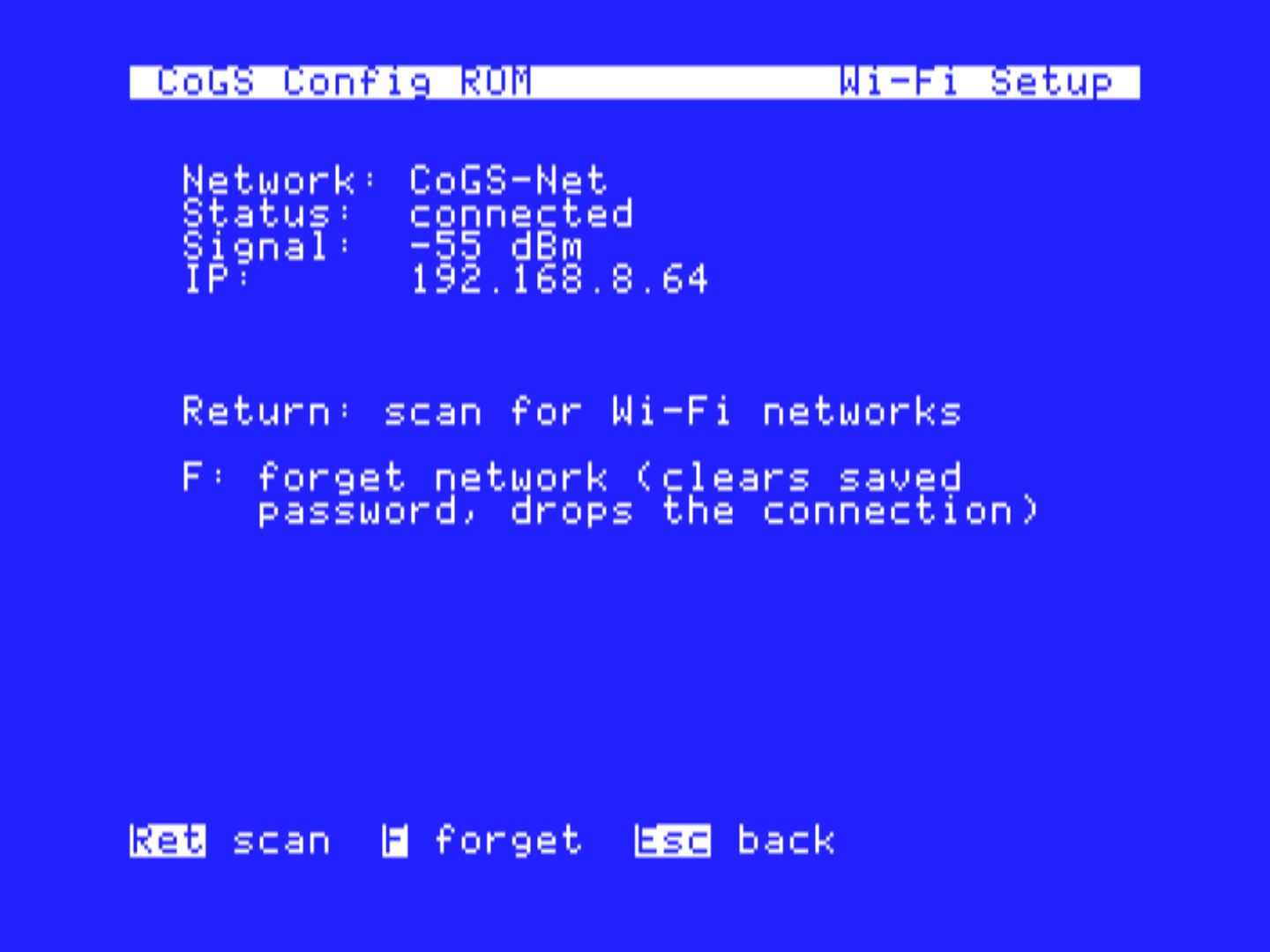

Wi-Fi Setup after joining: SSID, IP, and link state, saved to the card

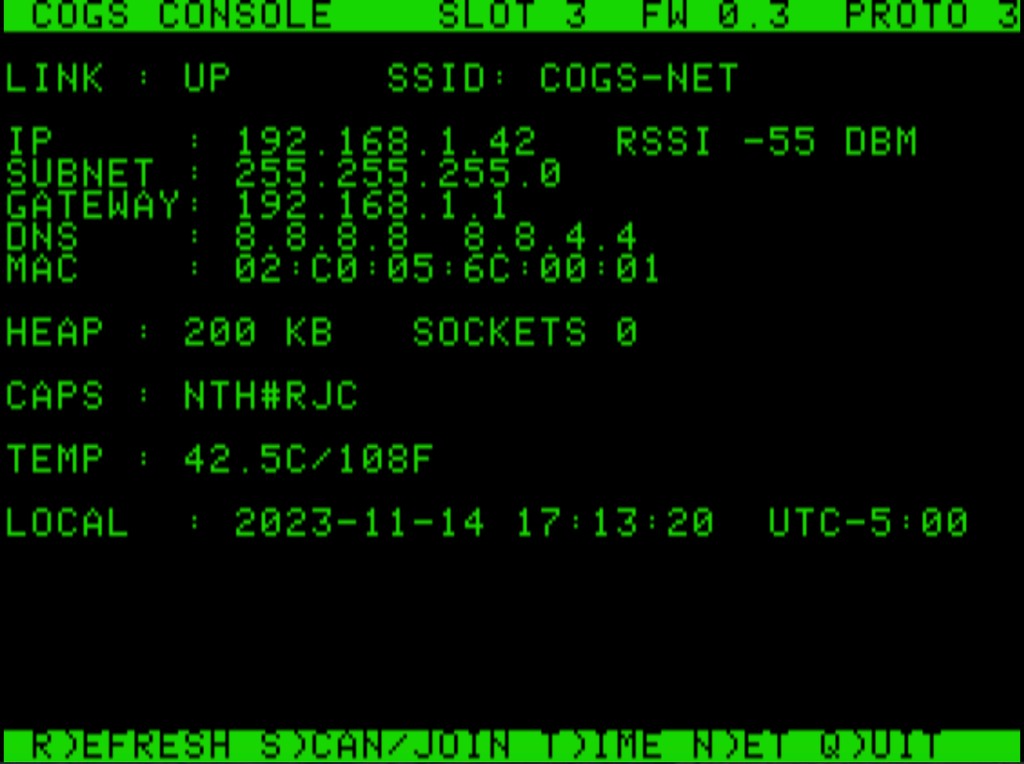

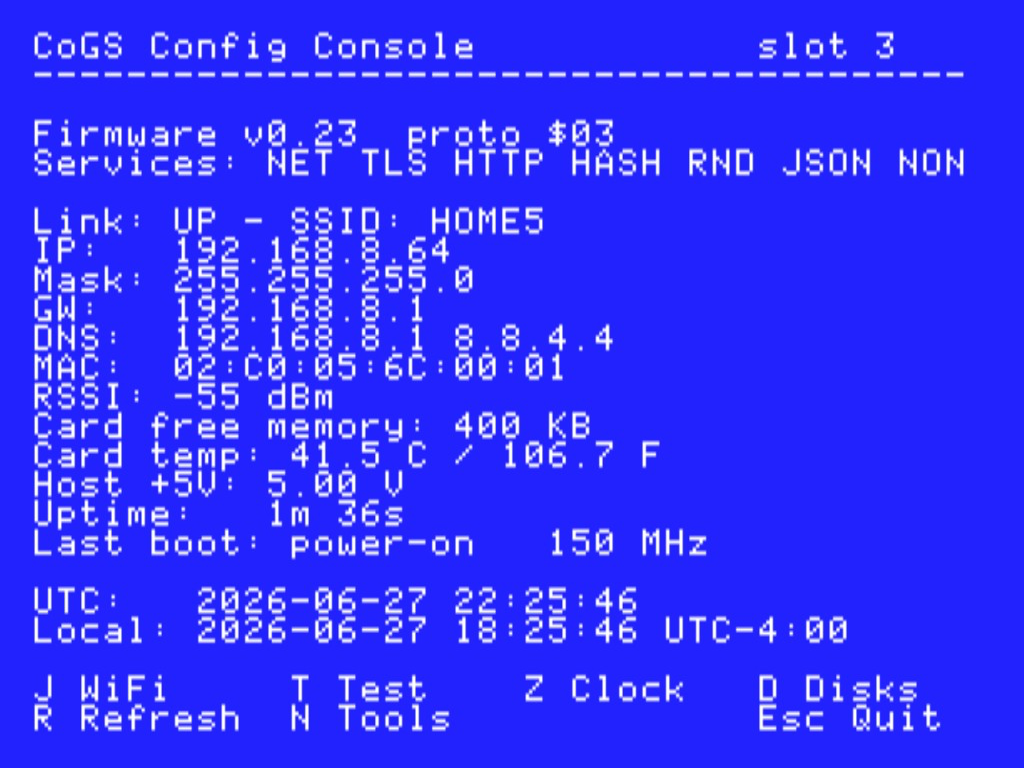

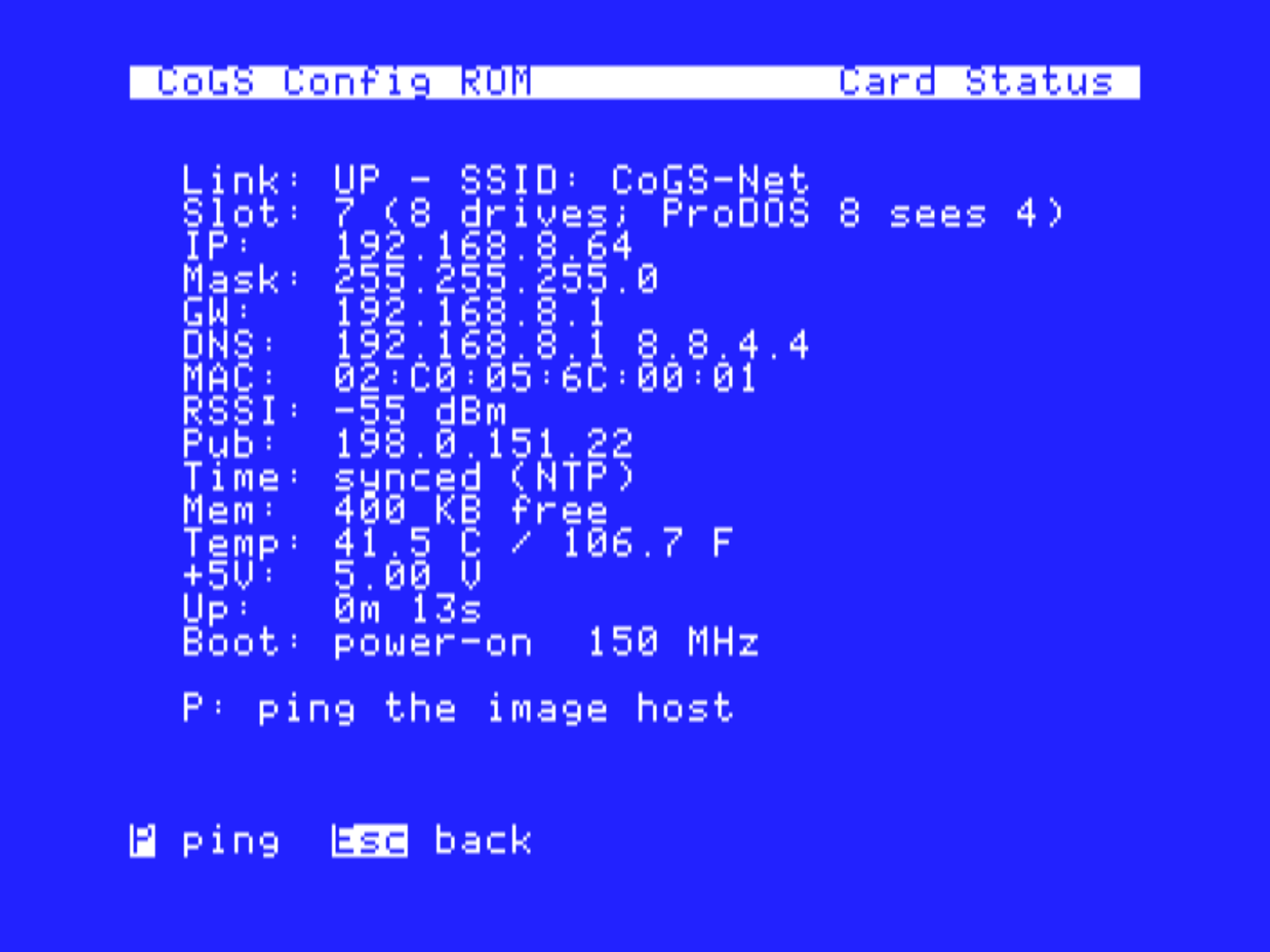

Card Status in the console: link, IP, subnet, gateway, DNS, MAC, signal, public IP, time sync, and card vitals

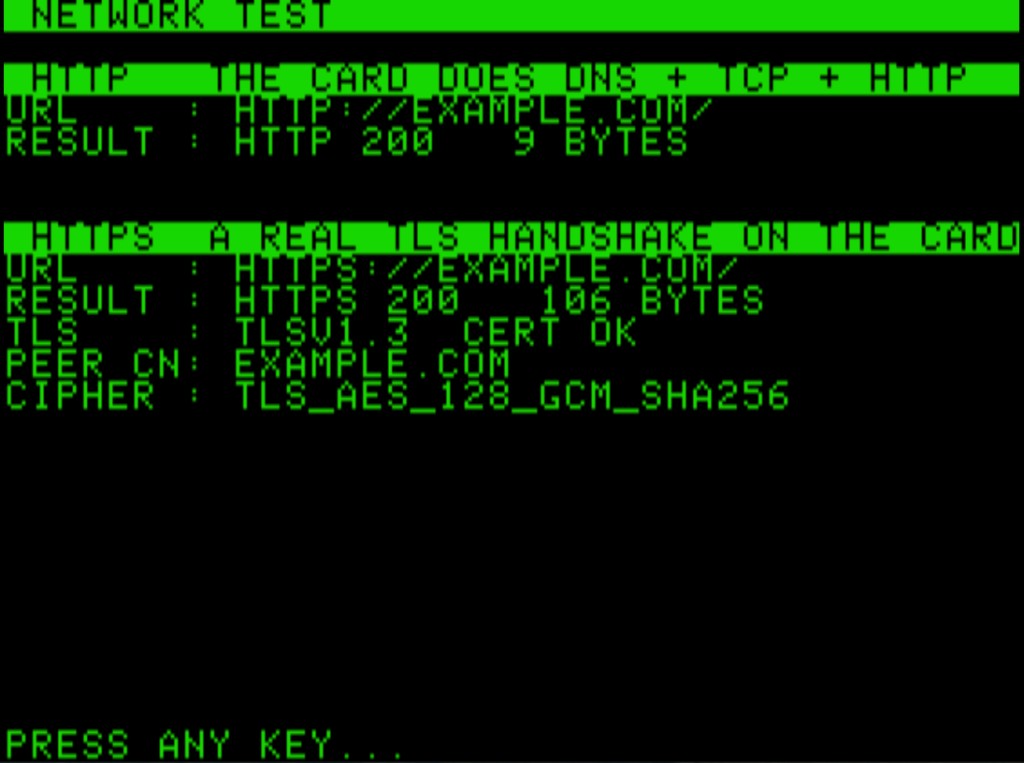

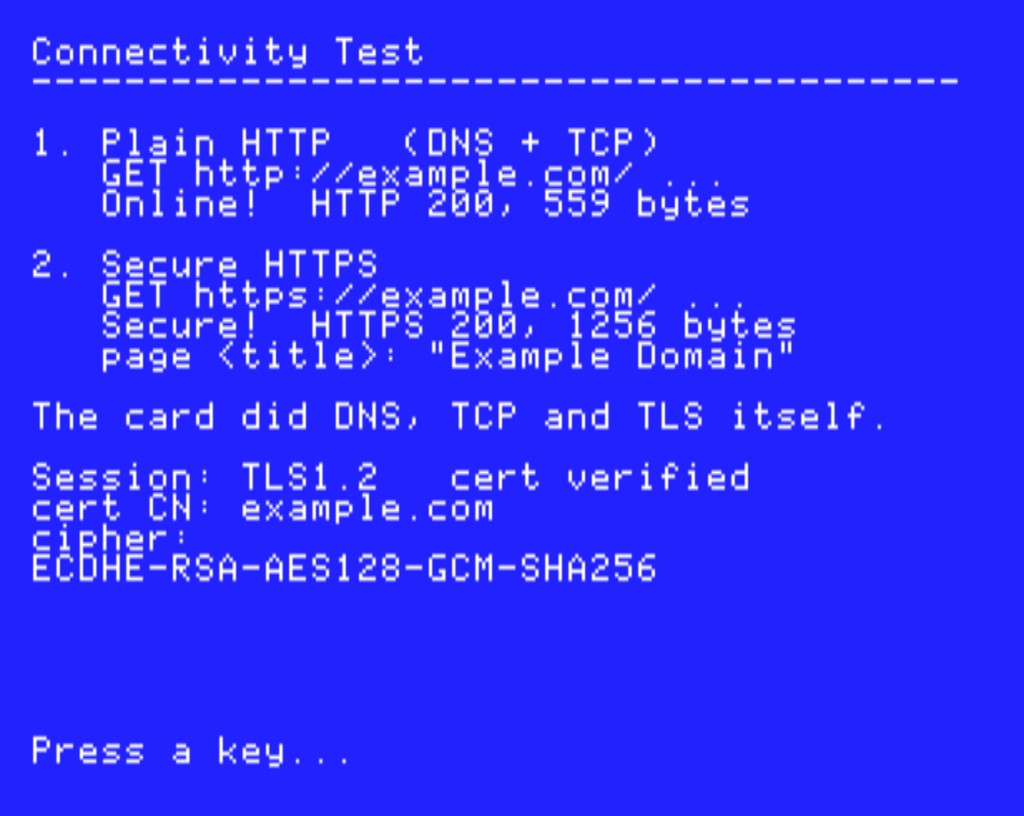

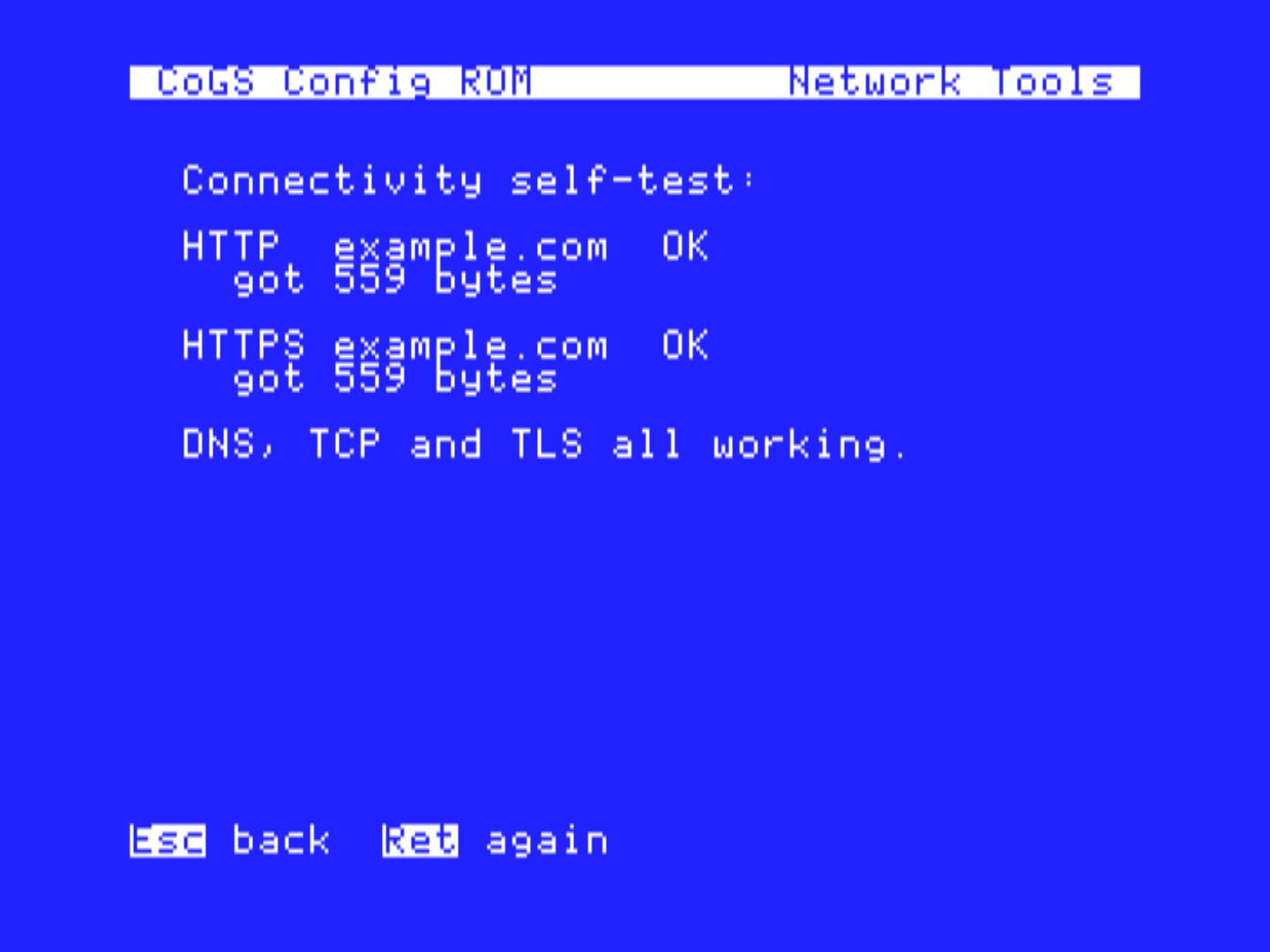

Connectivity self-test: link, DNS, gateway ping, internet ping, and an HTTPS fetch, each with a pass mark

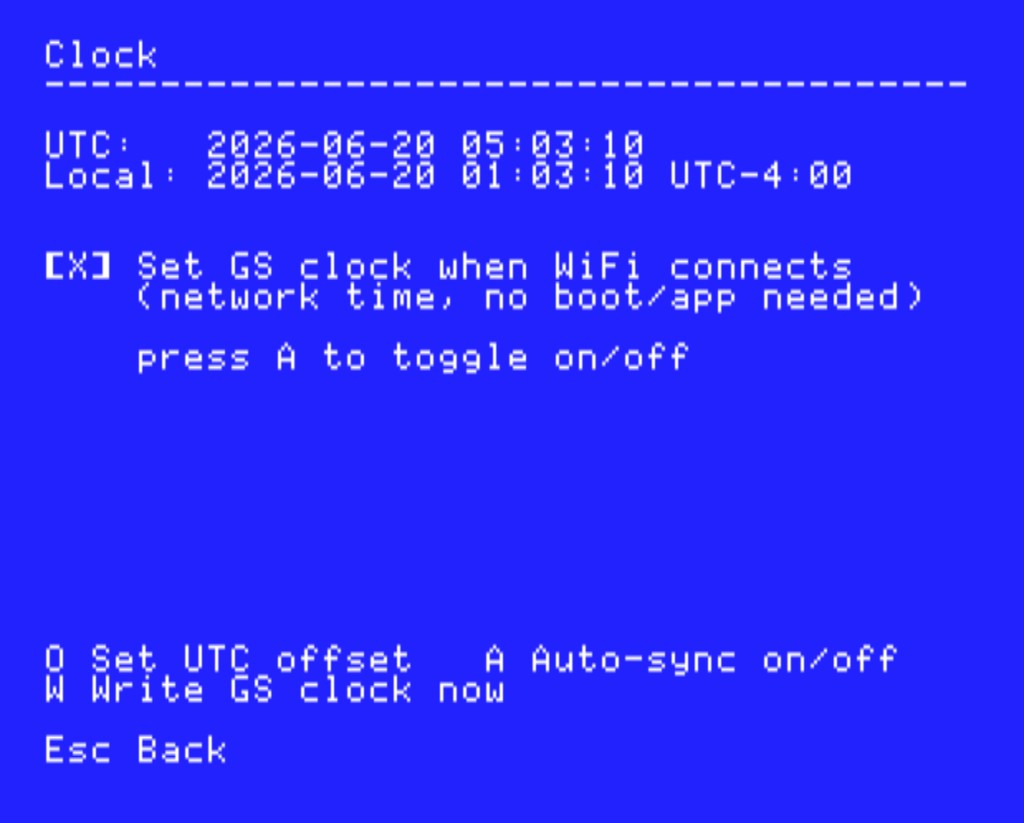

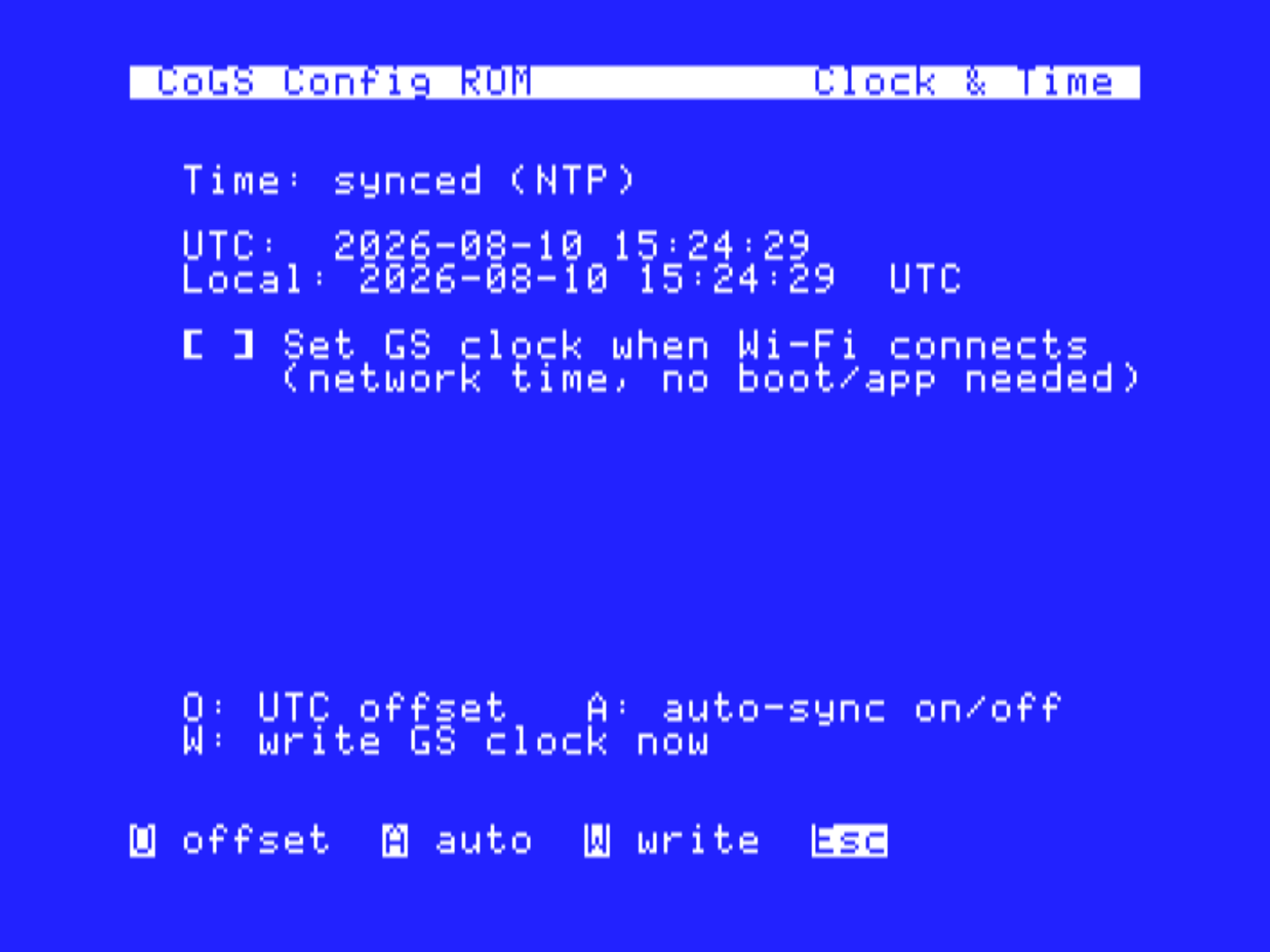

Clock & Time: network time over NTP with time zone, auto-synced when Wi-Fi connects
Working on hardware

Marinetti GS Link Layer

A native link-layer driver so the whole Marinetti TCP/IP ecosystem runs over CoGS. In bridge mode the GS gets its own IP and is a first-class host on your LAN (you can ping it from your Mac), so existing Marinetti apps — mail, web, IRC — run unchanged. Verified on real hardware, with a NAT mode for networks that need it.

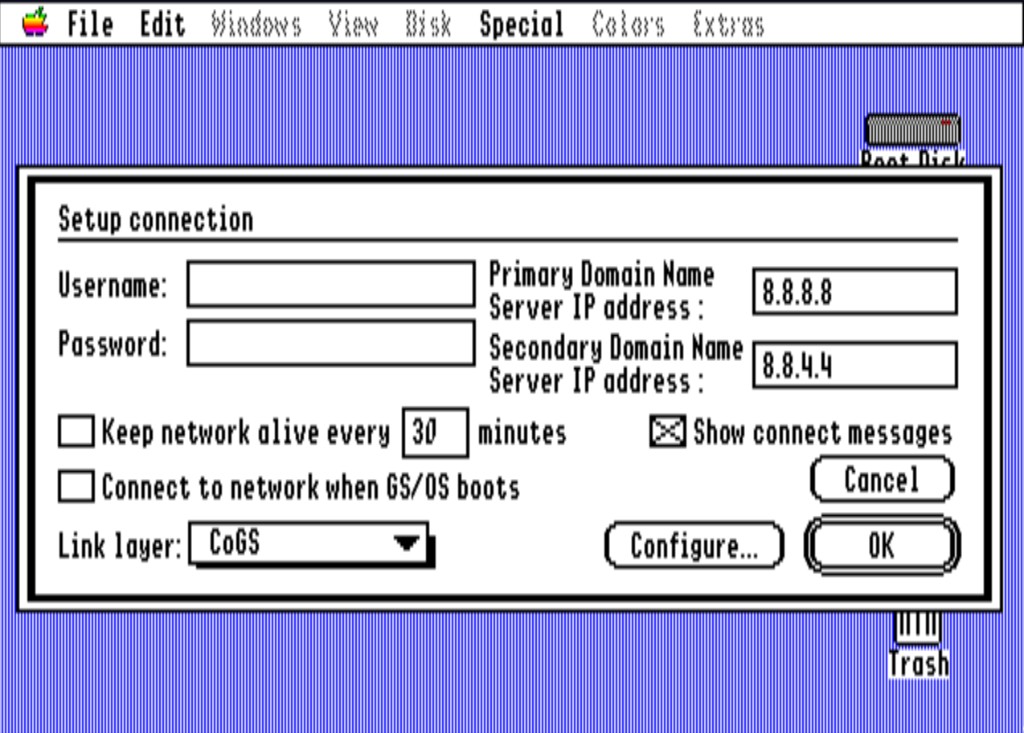

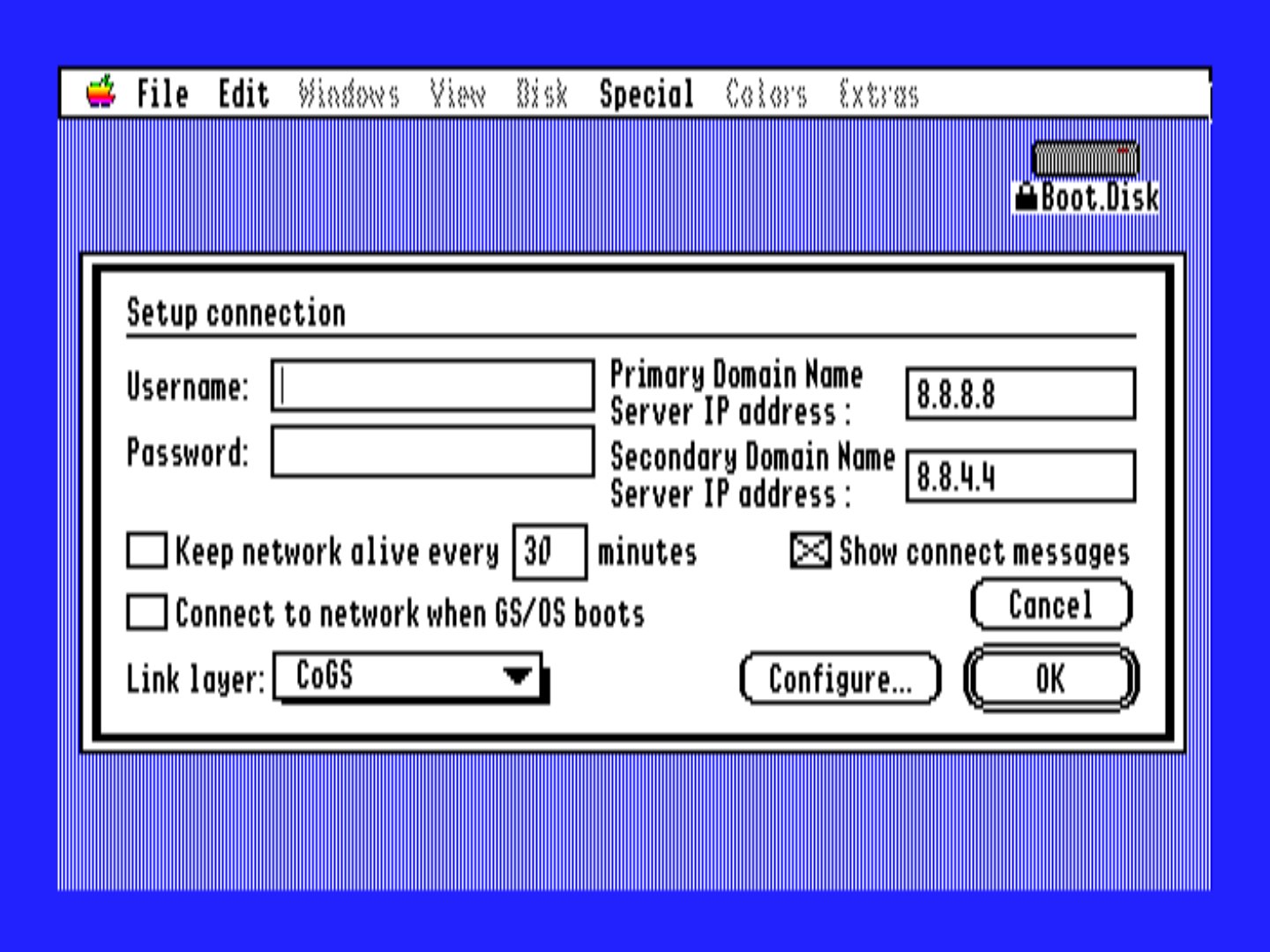

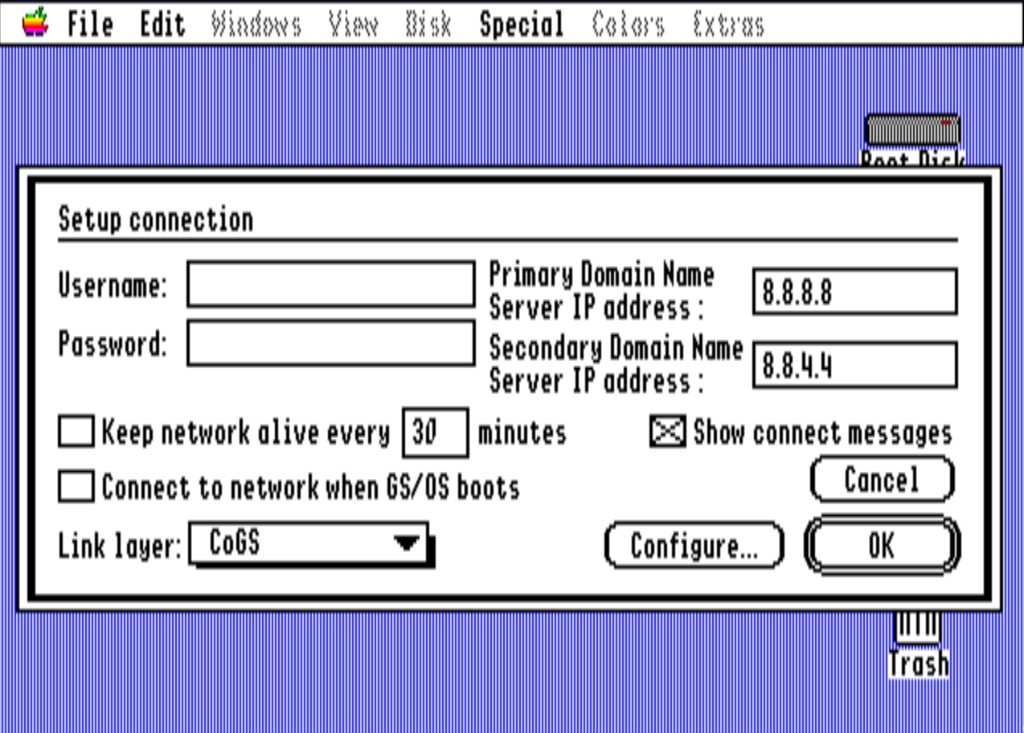

Marinetti TCP/IP Setup, with the Link layer set to CoGS

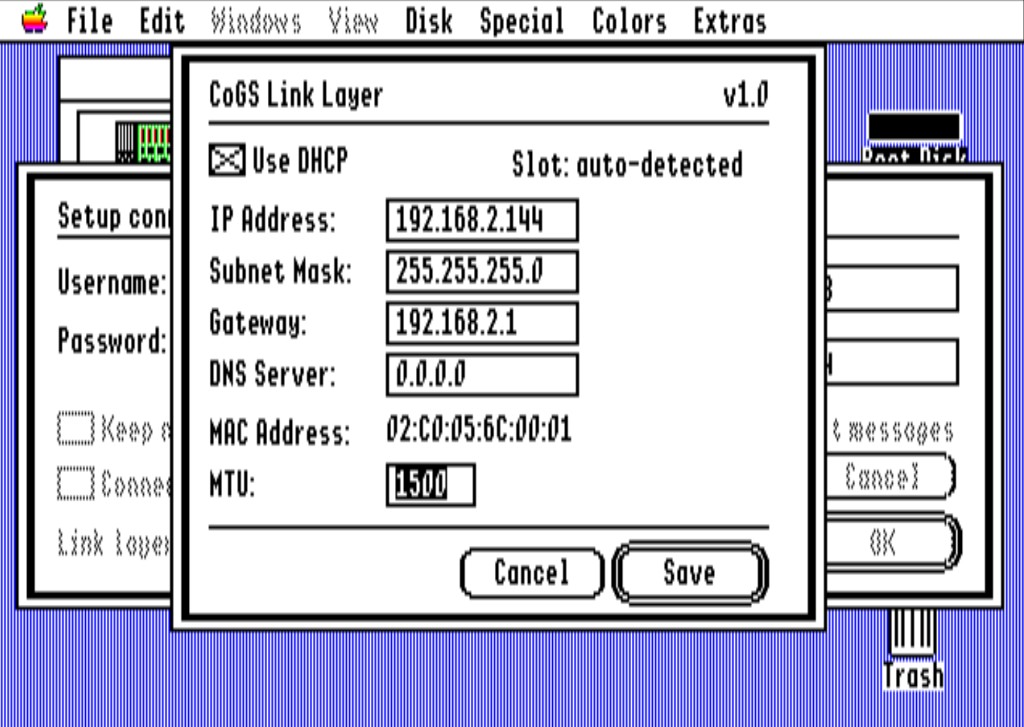

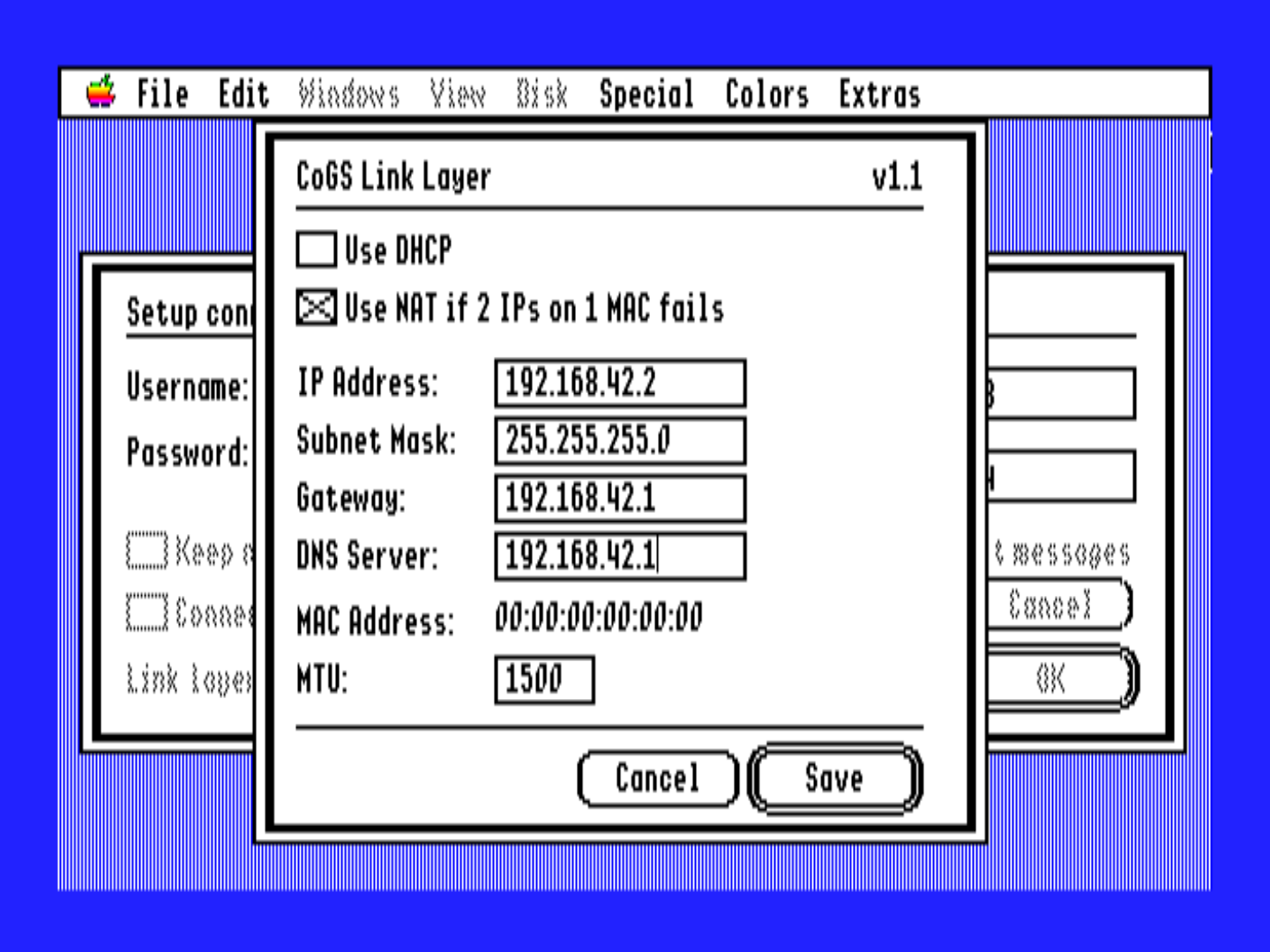

CoGS Link Layer config: DHCP or NAT mode, static IP, subnet, gateway, DNS, MAC, and MTU
Working

Every Apple II

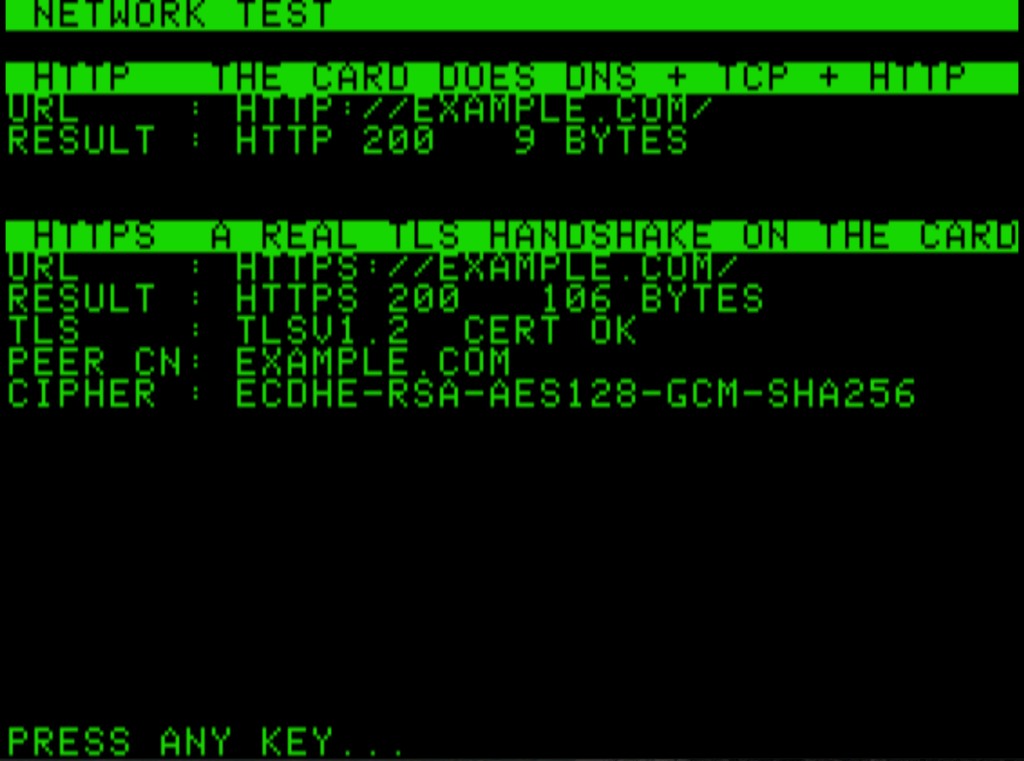

A slot is a slot. The same card on the same open A2Pico carrier runs in the ][+, the //e, and the IIGS. And the config ROM means the 8-bit machines get the full experience with nothing installed: power on a //e, join Wi-Fi, type TOTAL into the whole-corpus search, and boot Total Replay streaming from its GitHub release, 400+ arcade titles one Return away. The cc65 / ProDOS 8 client covers the co-processor services (DNS, TCP, and a TLS 1.2 HTTPS handshake on the card) for software that wants them.

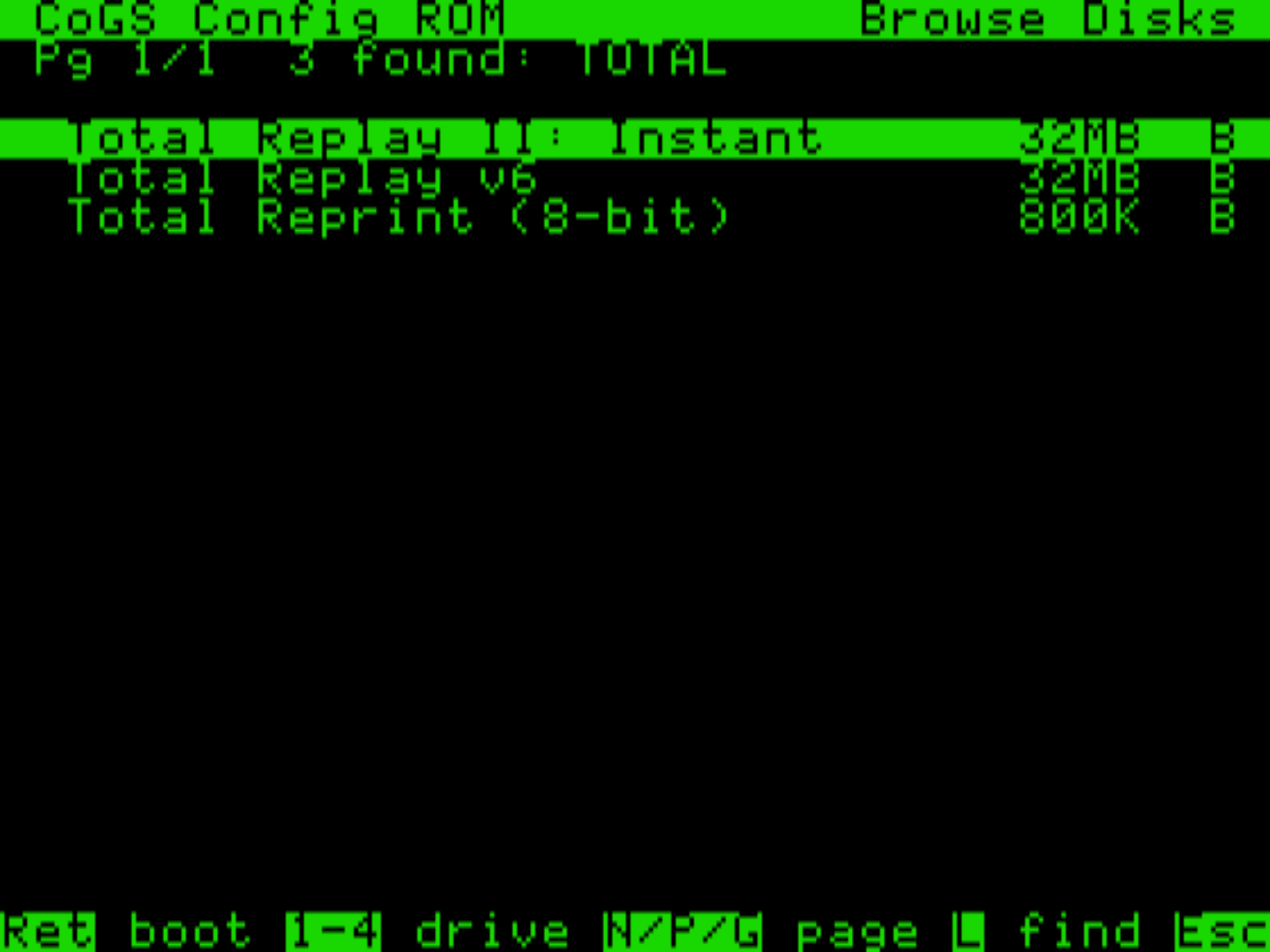

Whole-corpus search on an Apple //e: typing TOTAL finds Total Replay, one Return from booting its 400+ titles over the network

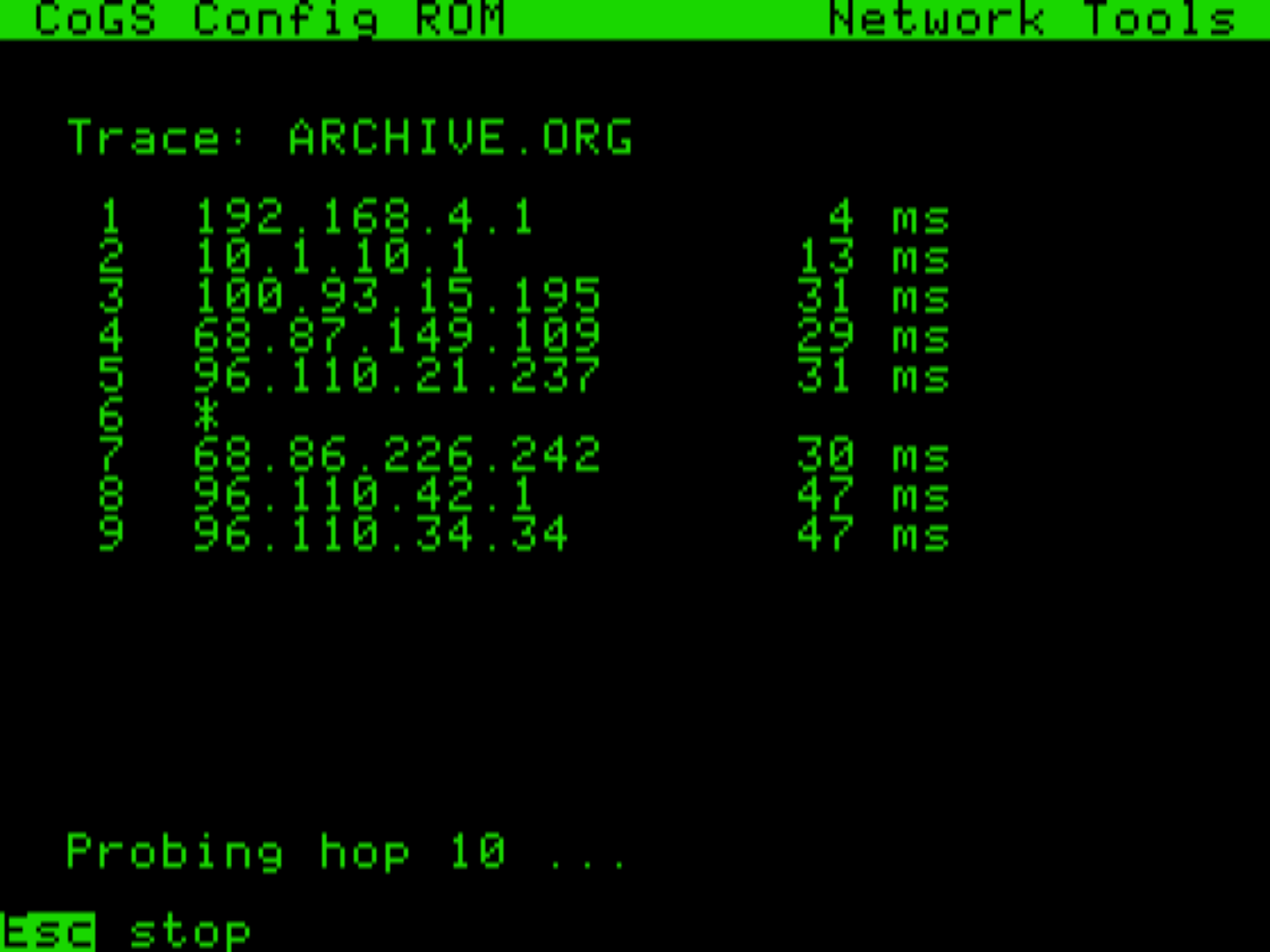

A live traceroute to archive.org running on the //e's green phosphor screen, hop by hop with round-trip times
Working on hardware

Plug in and go

The network is a disk.

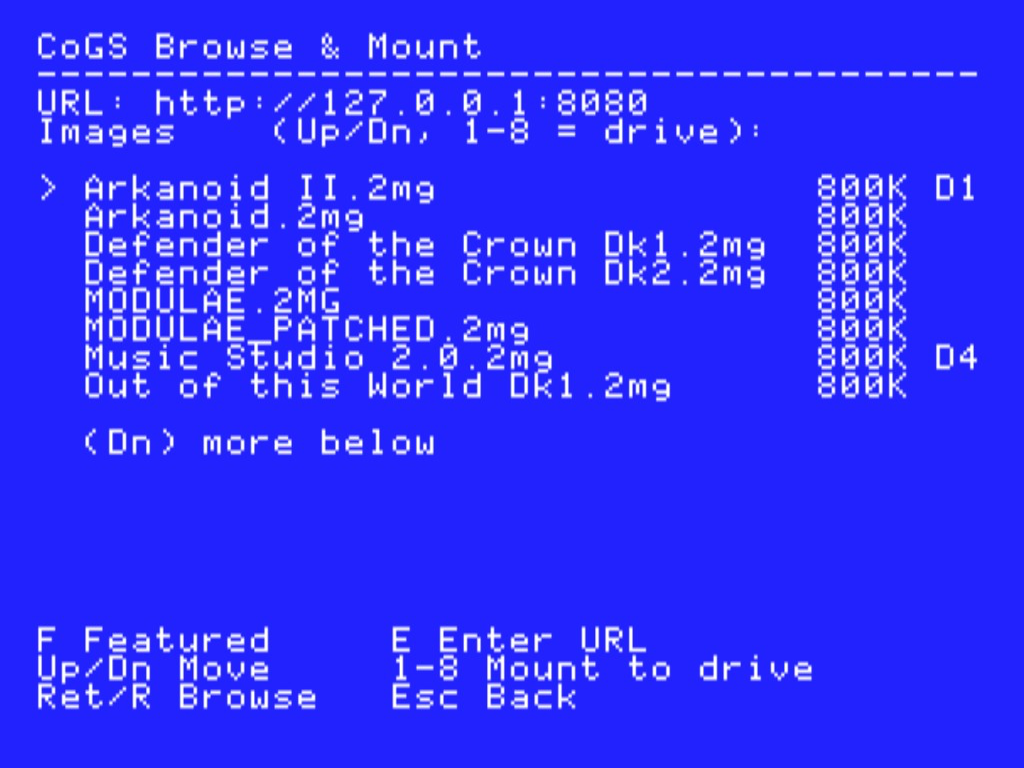

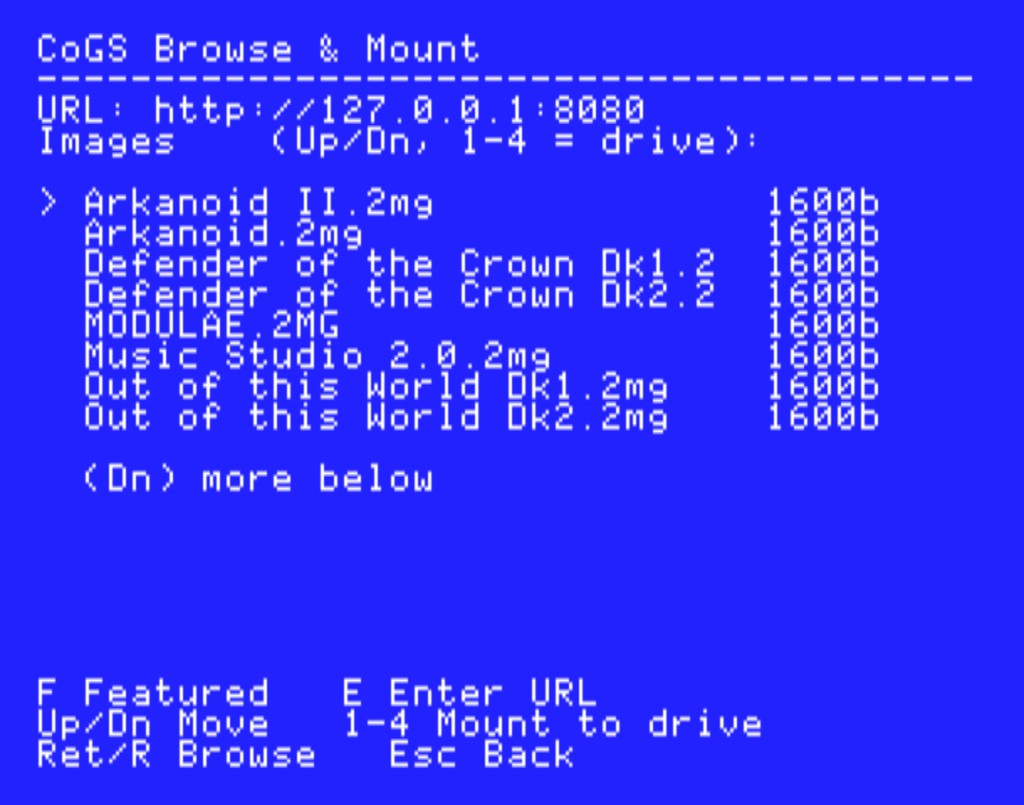

CoGS does not just fetch data — it serves whole disks. Give it a link to a disk image, on your own network or anywhere on the internet, and your Apple sees a real drive: it boots from it, runs from it, and writes back to it, with nothing installed on the machine.

That makes CoGS the first true plug-and-play Apple II experience. Seat the card, power on, and you are browsing and booting a 500+ image library with no OS, no boot disk, no setup software, and nothing to configure beyond your Wi-Fi password. From power-on to running is literally about one minute: boot, join Wi-Fi, browse, hit Return — and essentially every published Apple II app ever written is yours to run, streaming over Wi-Fi. For the daily workflow, share a folder of images off your Mac and the card mounts it read/write over the LAN. The days of shuffling floppies, burning CF cards, and clunky transfer utilities are over.

Mount and boot, no install

The card answers SmartPort and ProDOS block calls straight out of its ROM, so the drive is there the moment the machine powers on — the trick the community loves from cards like the CFFA, now coming off the network instead of a local chip. That link can point at a folder shared off your own Mac or at a file out on the web: the card does DNS, TCP, and TLS itself, so an https:// URL mounts exactly like a LAN one. You browse and mount images from the desktop, and the host never knows the disk lives on a server.

  • No driver, no setup disk — recognized at boot like any other slot drive, on the GS and on 8-bit Apples.
  • Any link, anywhere — a folder shared off your Mac, a file on a web server, or an image in a public archive. If it answers HTTP range requests, the card can mount it, with HTTPS terminated on the card.

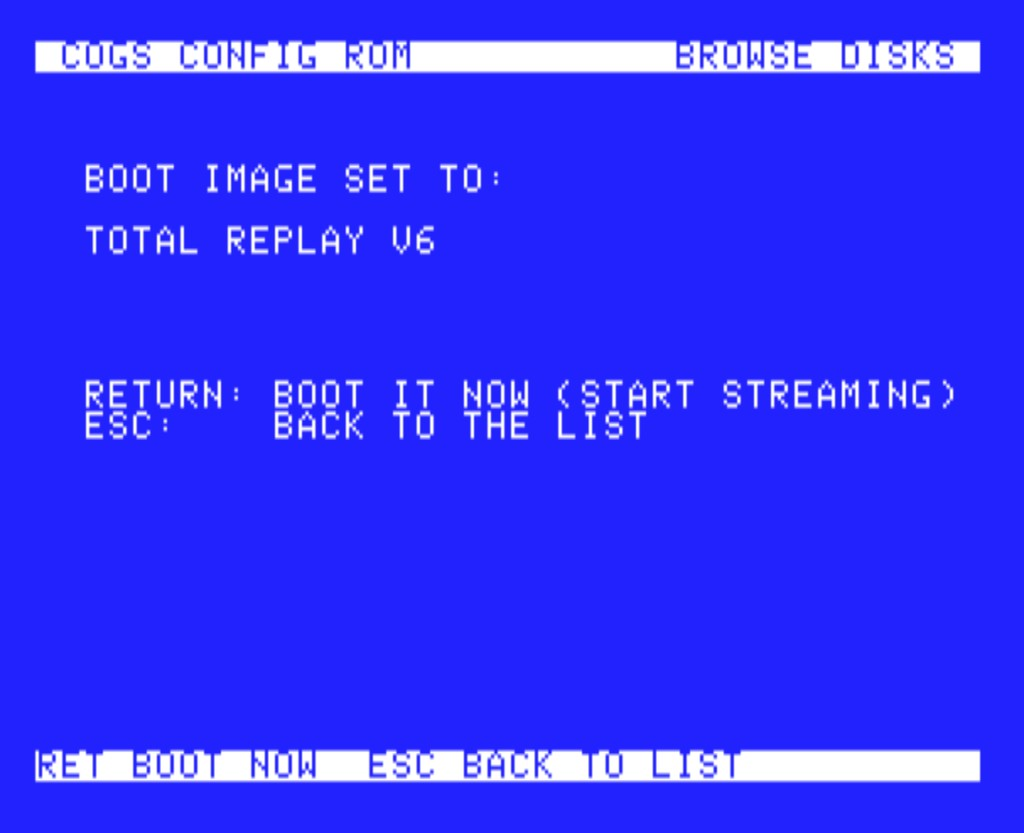

  • Boot off the wire — set a boot image and the machine comes straight up from your LAN or from the internet.
  • Read and write — blocks are written back to a writable share, not just read, verified end to end. Read/write is available on your LAN with the CoGS Image Manager; the a2cogs index streams read-only.

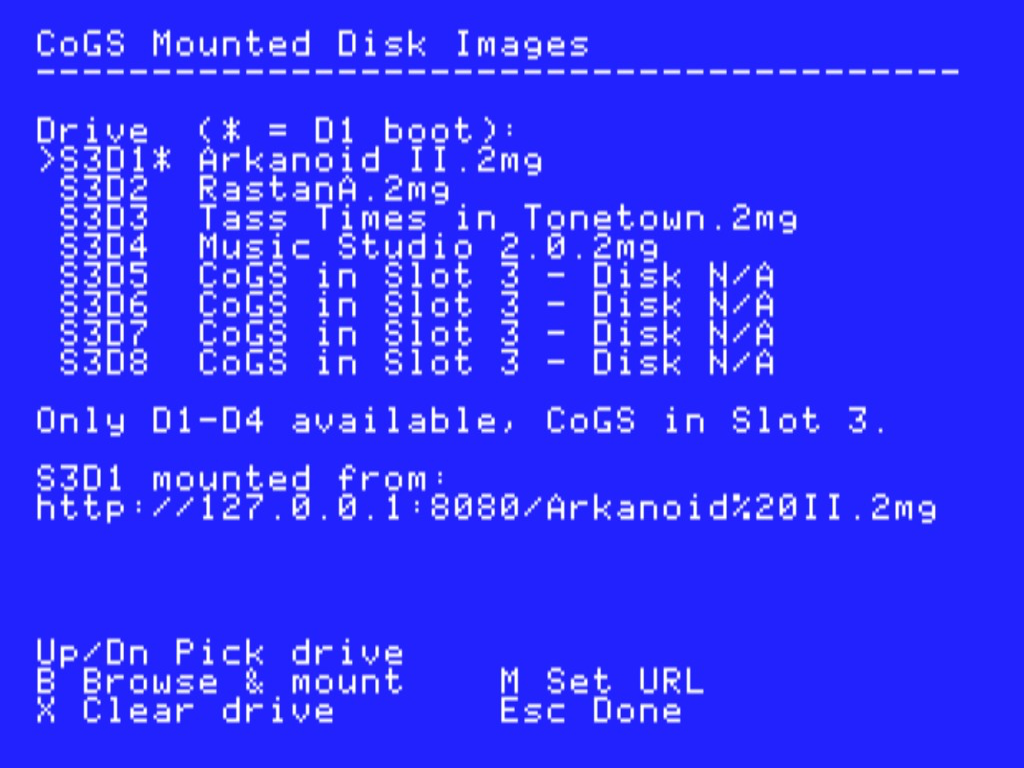

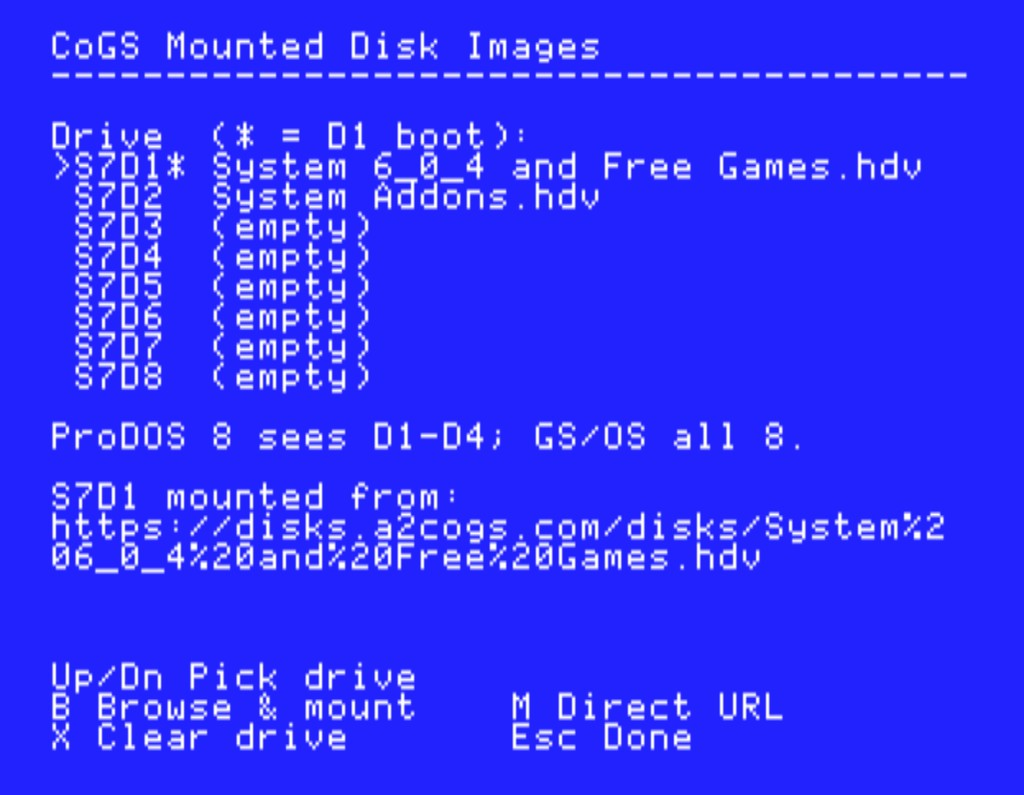

  • Several drives at once — a multi-unit mount table you manage from the desktop, so you can change images without rebuilding the machine.
Streaming on real hardware · every index image boot-tested

Power on to a config ROM

No OS, no boot disk, no setup software. The card carries its own config ROM: power the machine on and it comes up in a menu where you join Wi-Fi, check the network, browse the disk index, and pick what to boot. Everything in these screens is running from the card's ROM on a machine with empty drive bays.

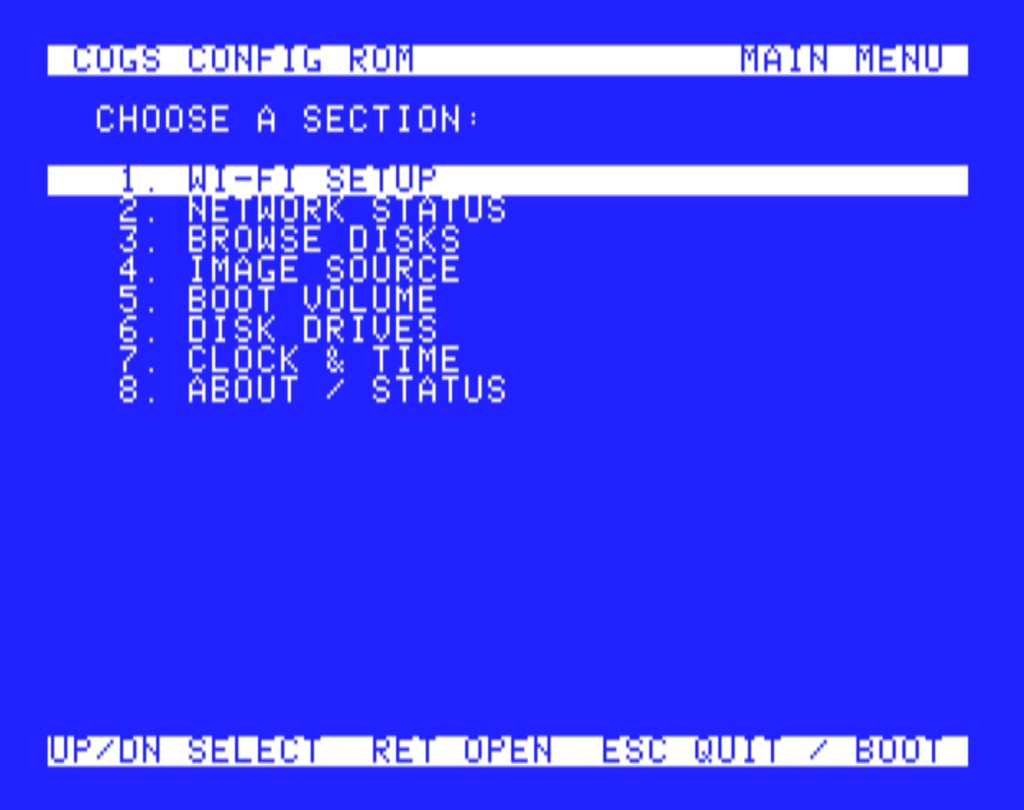

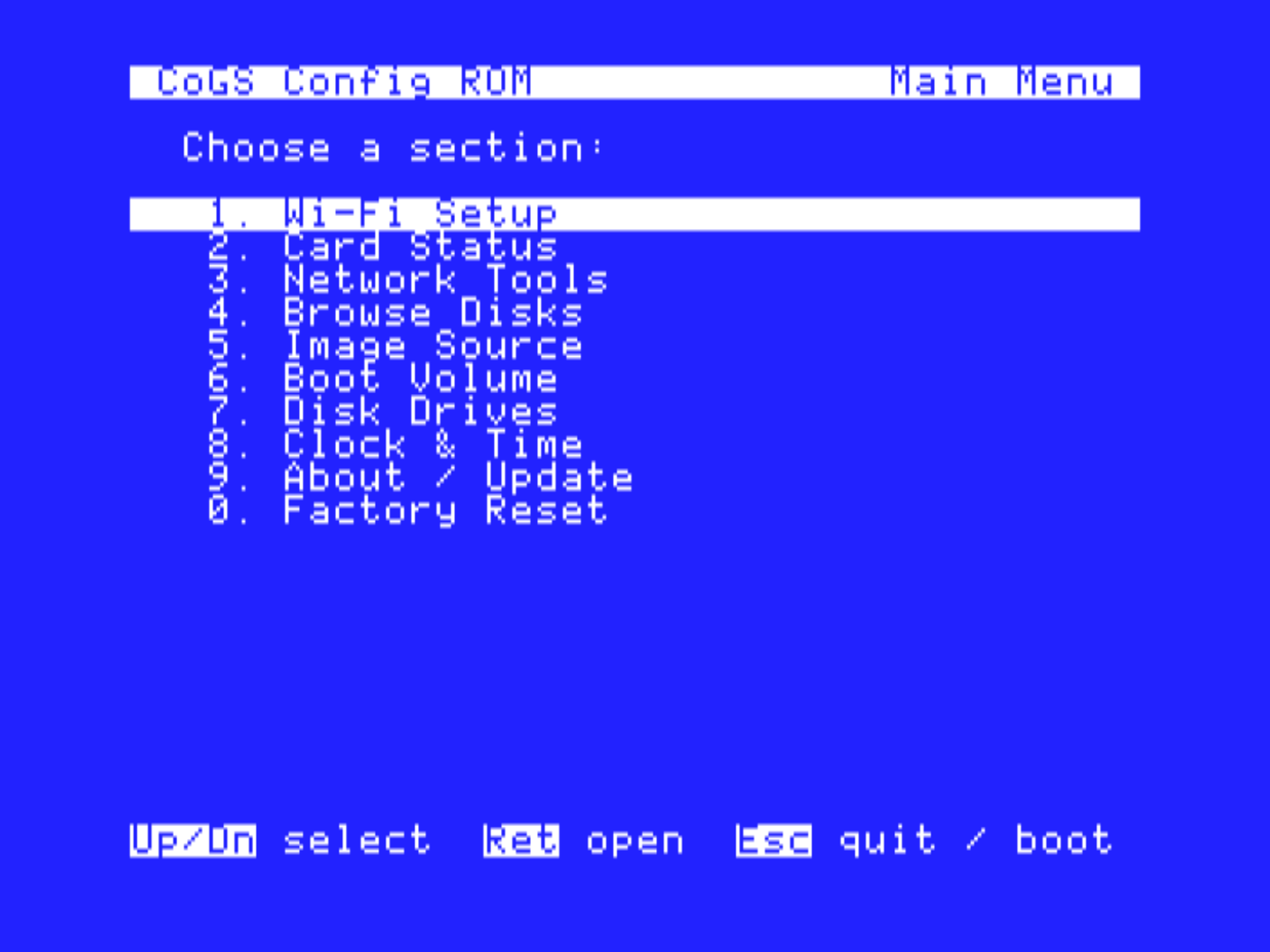

CoGS config ROM main menu on power-on: Wi-Fi setup, card status, network tools, browse disks, image source, boot volume, disk drives, clock, about / update, and factory reset

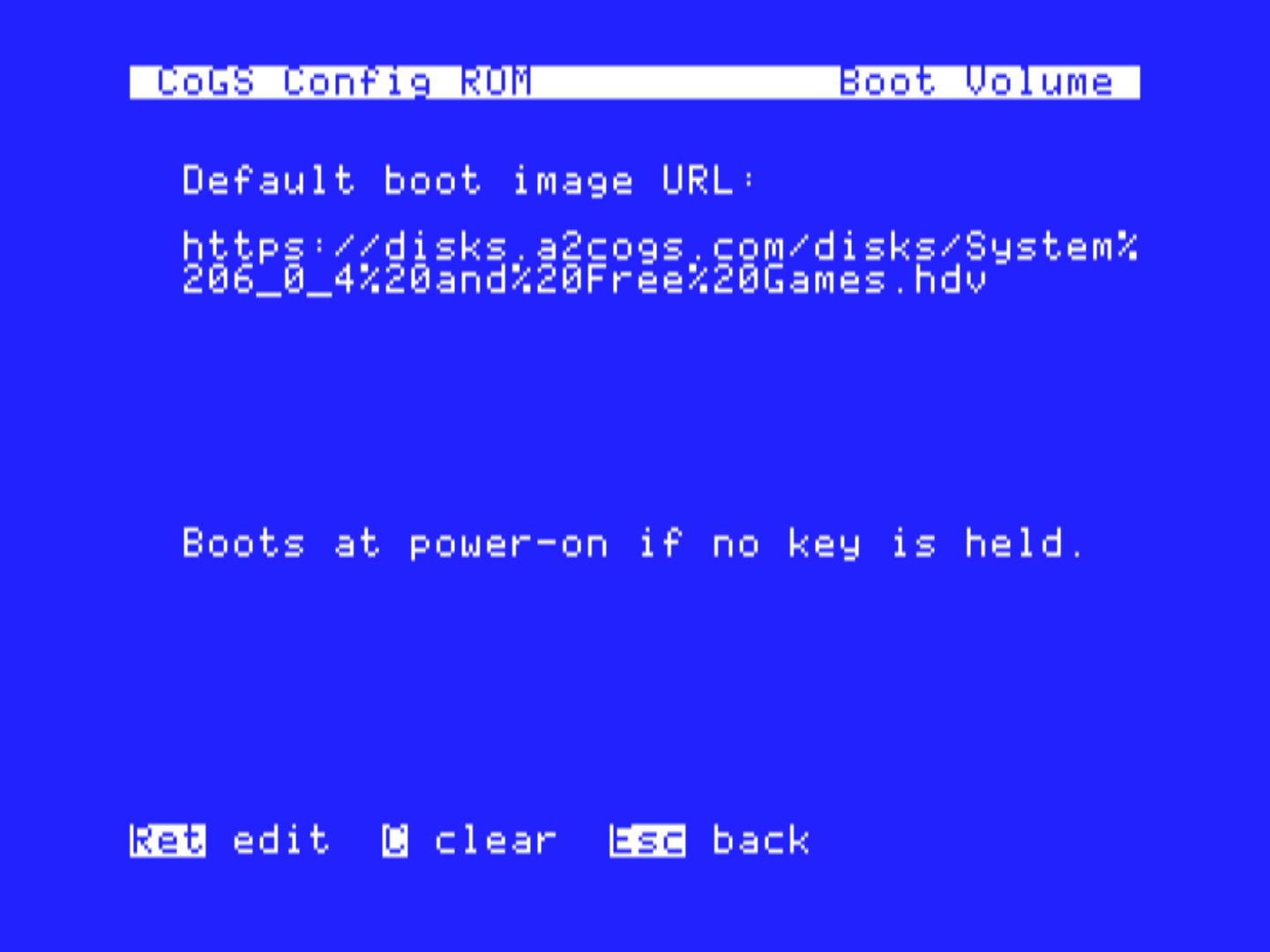

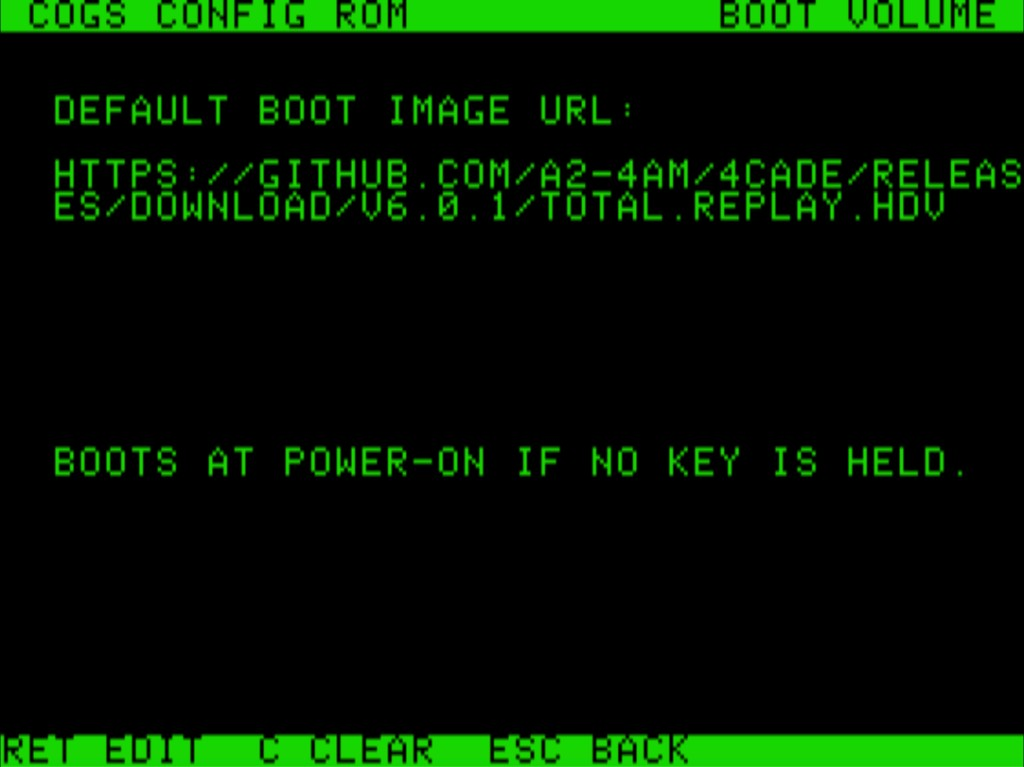

Boot Volume: the image the machine boots at power-on, set from Browse or typed as any URL

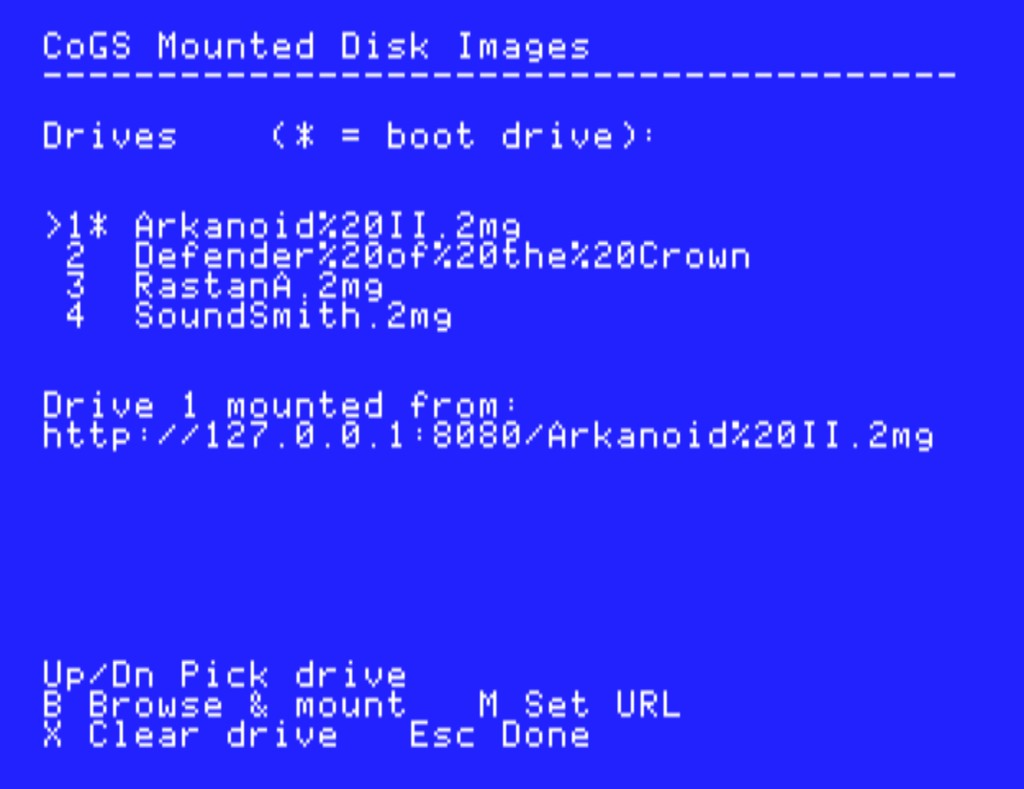

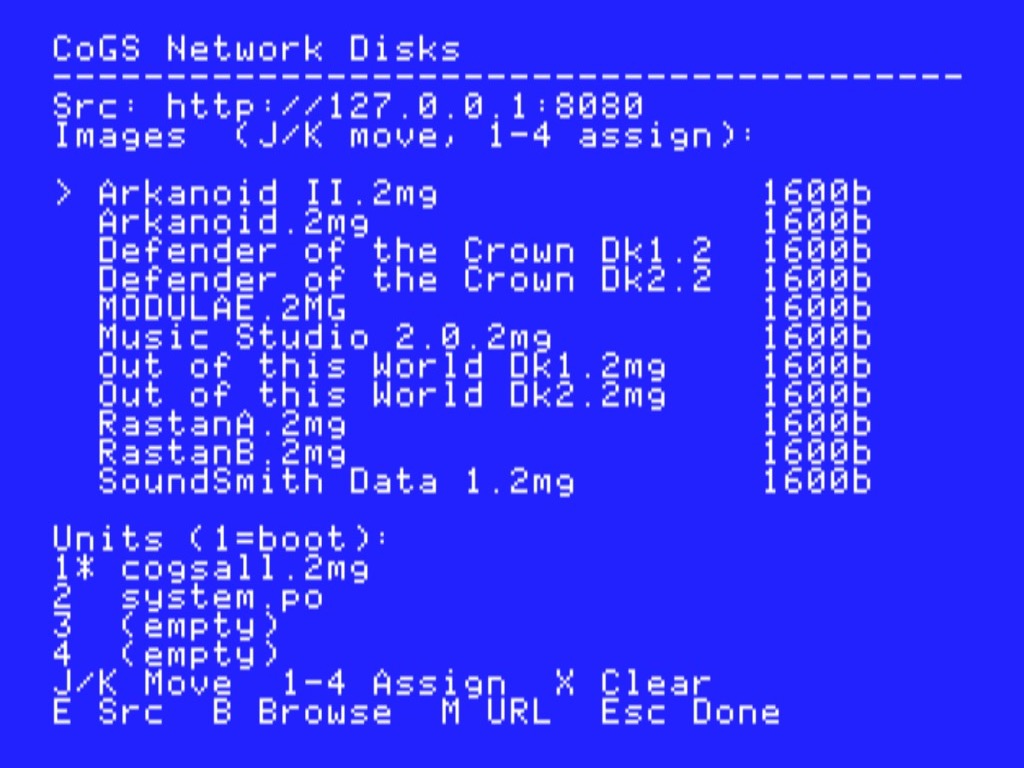

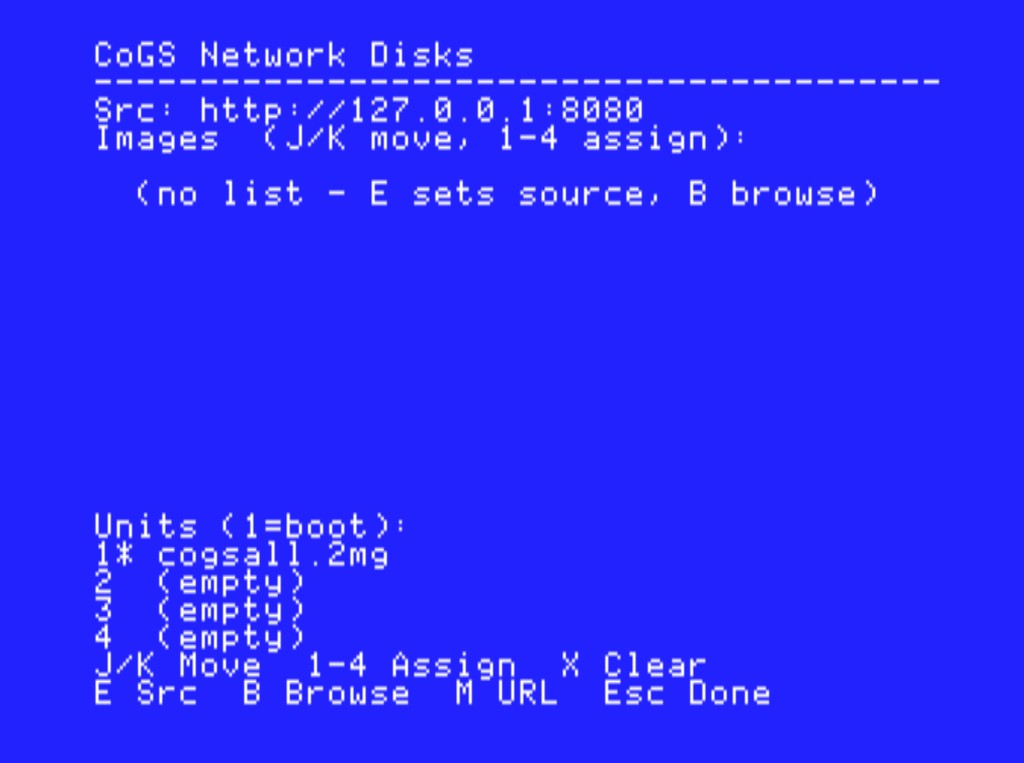

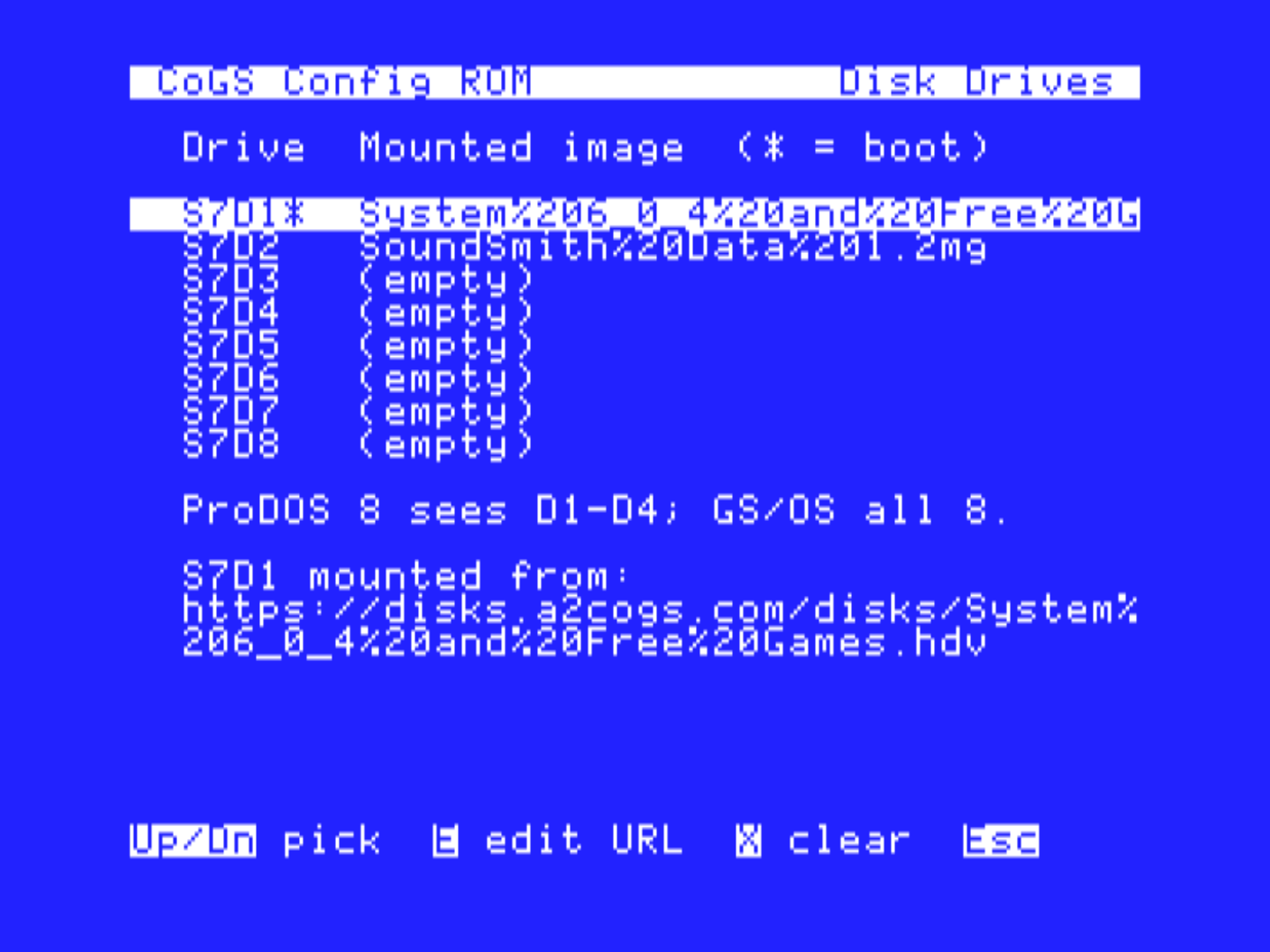

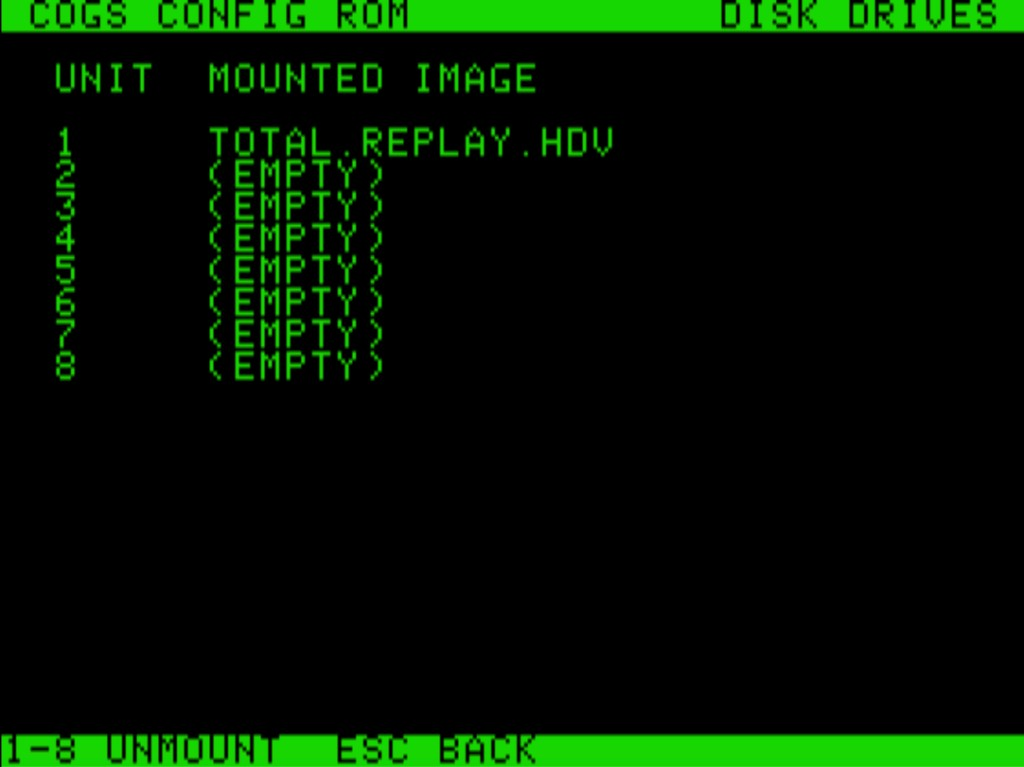

Disk Drives: the multi-unit mount table, images mounted from the network as SmartPort units

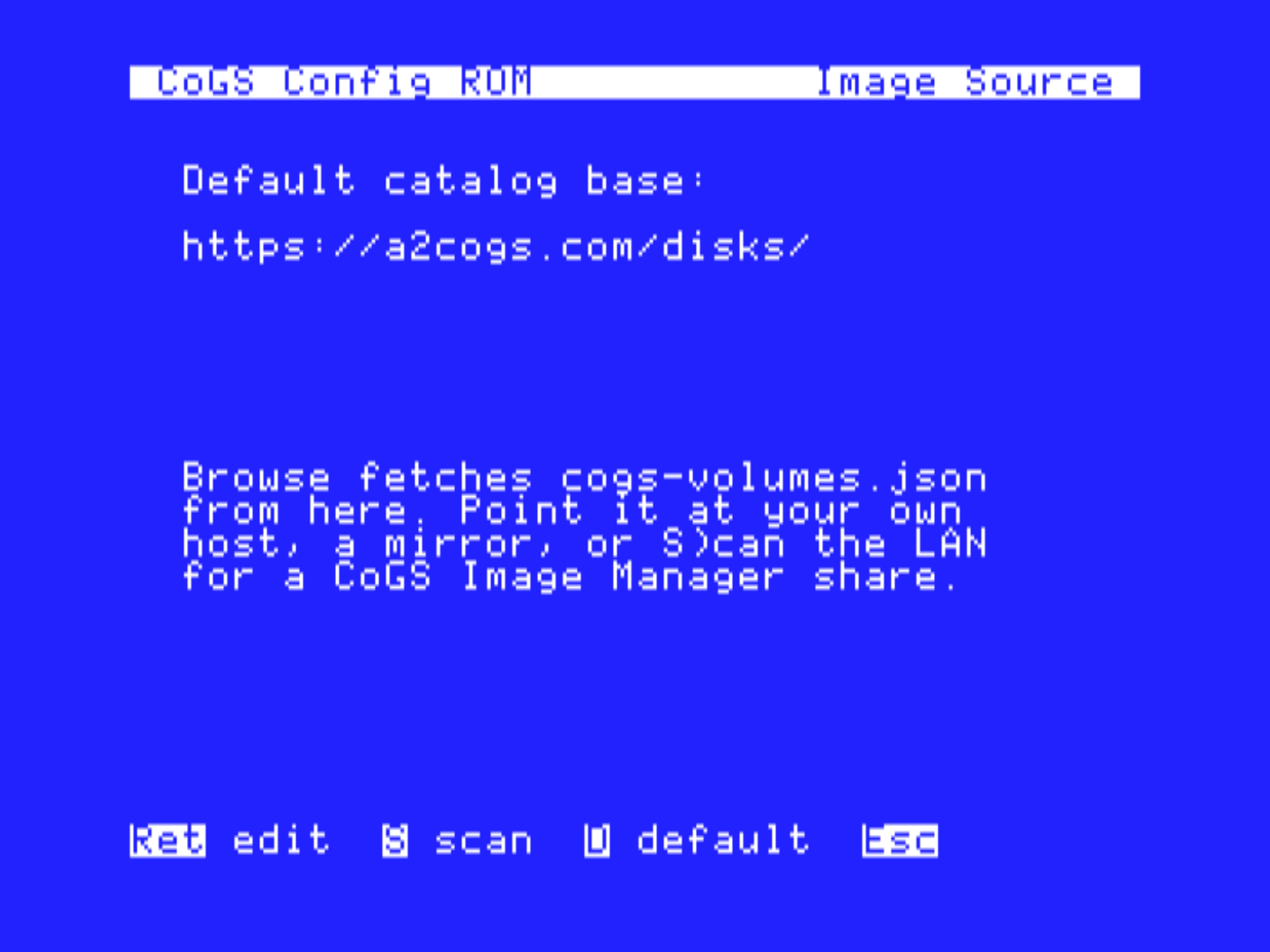

Image Source: the catalog base URL, editable, with a one-key LAN scan for a CoGS Image Manager share

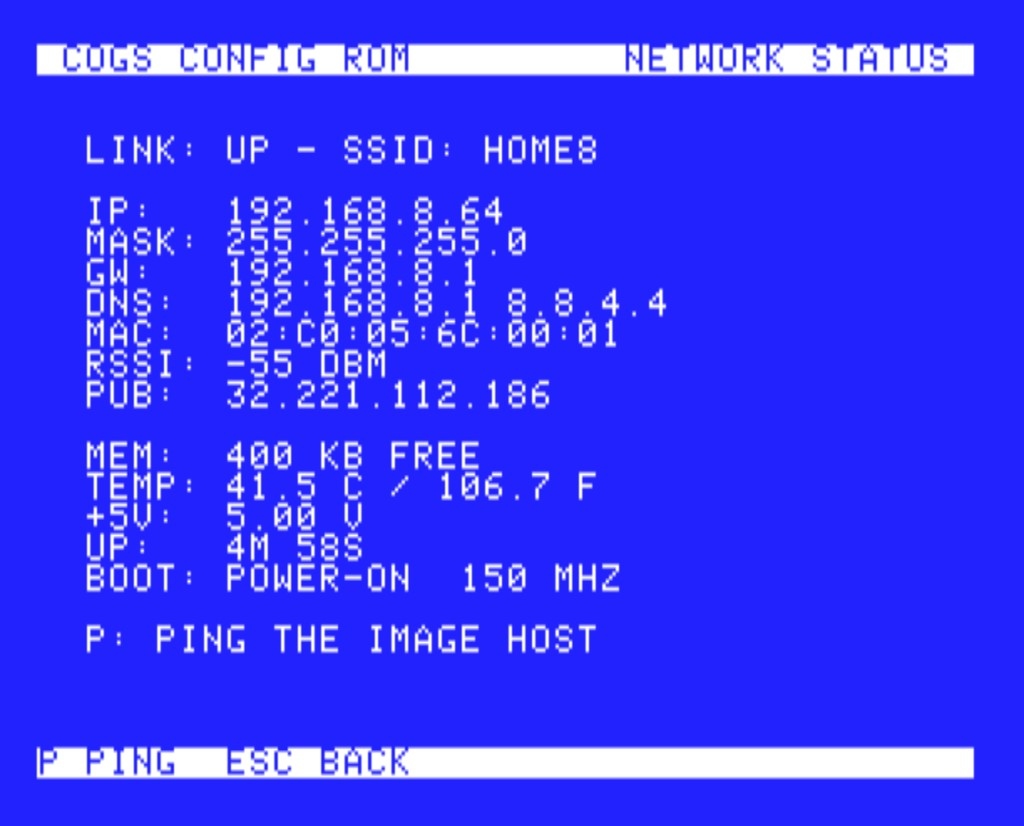

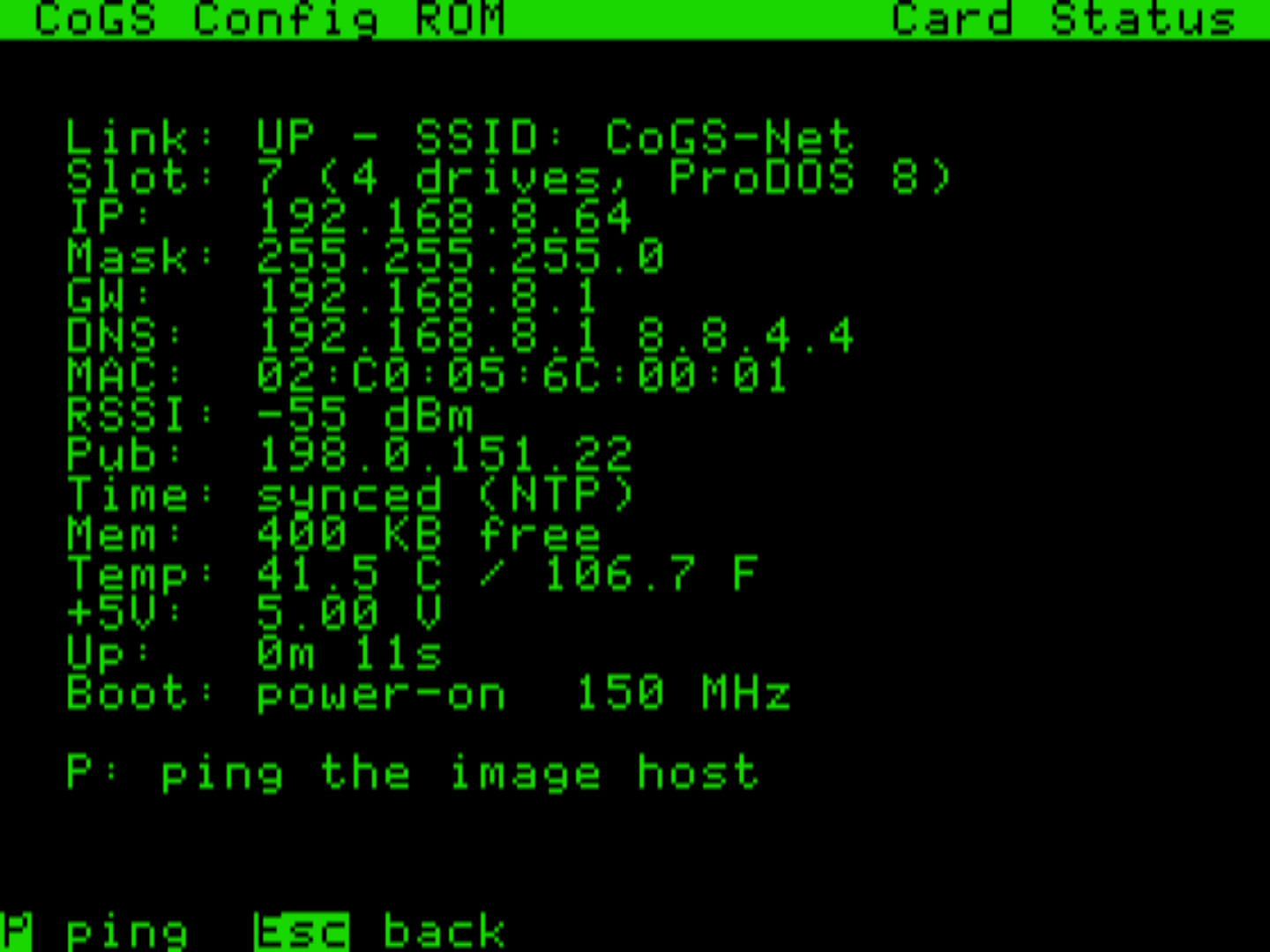

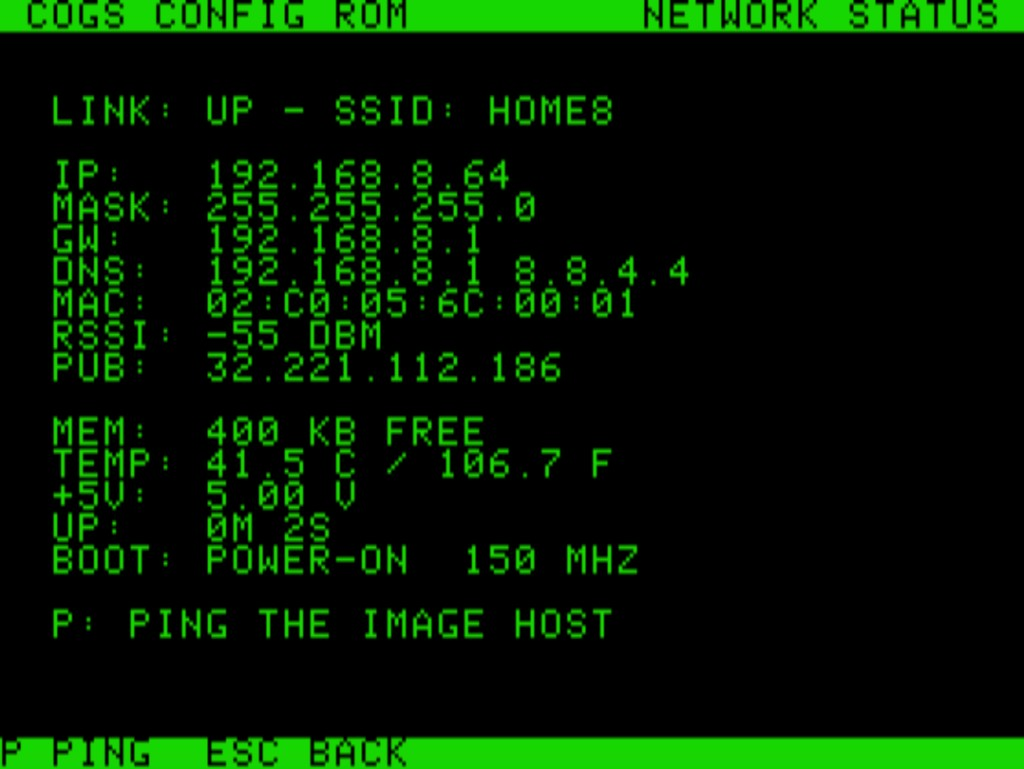

Card Status from ROM on an Apple //e: link, IP, MAC, signal, public IP, time sync, and card vitals, green phosphor and all

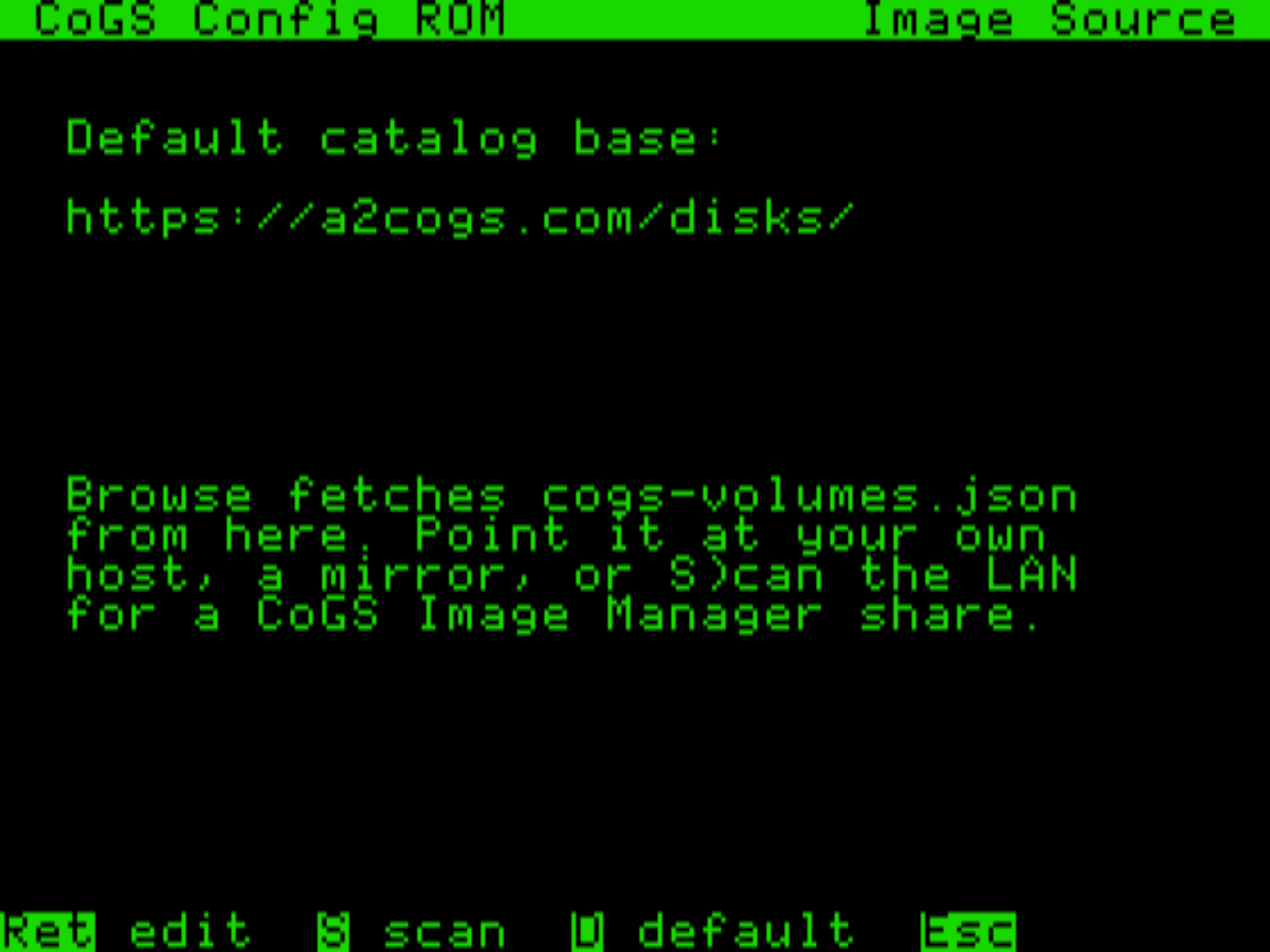

Image Source on the //e: the a2cogs.com catalog base, editable, with a one-key LAN scan for a CoGS Image Manager share

Tools in ROM, updates over the air

The card looks after itself, and shows its work on the Apple's own screen. Network Tools in the ROM run DNS lookup, ping, traceroute, TCP port checks, and a one-key connectivity self-test, all executed on the card. And About / Update fetches the release list from a2cogs.com so the card can download, verify, and flash new firmware right from the machine. No cable, no other computer, ever.

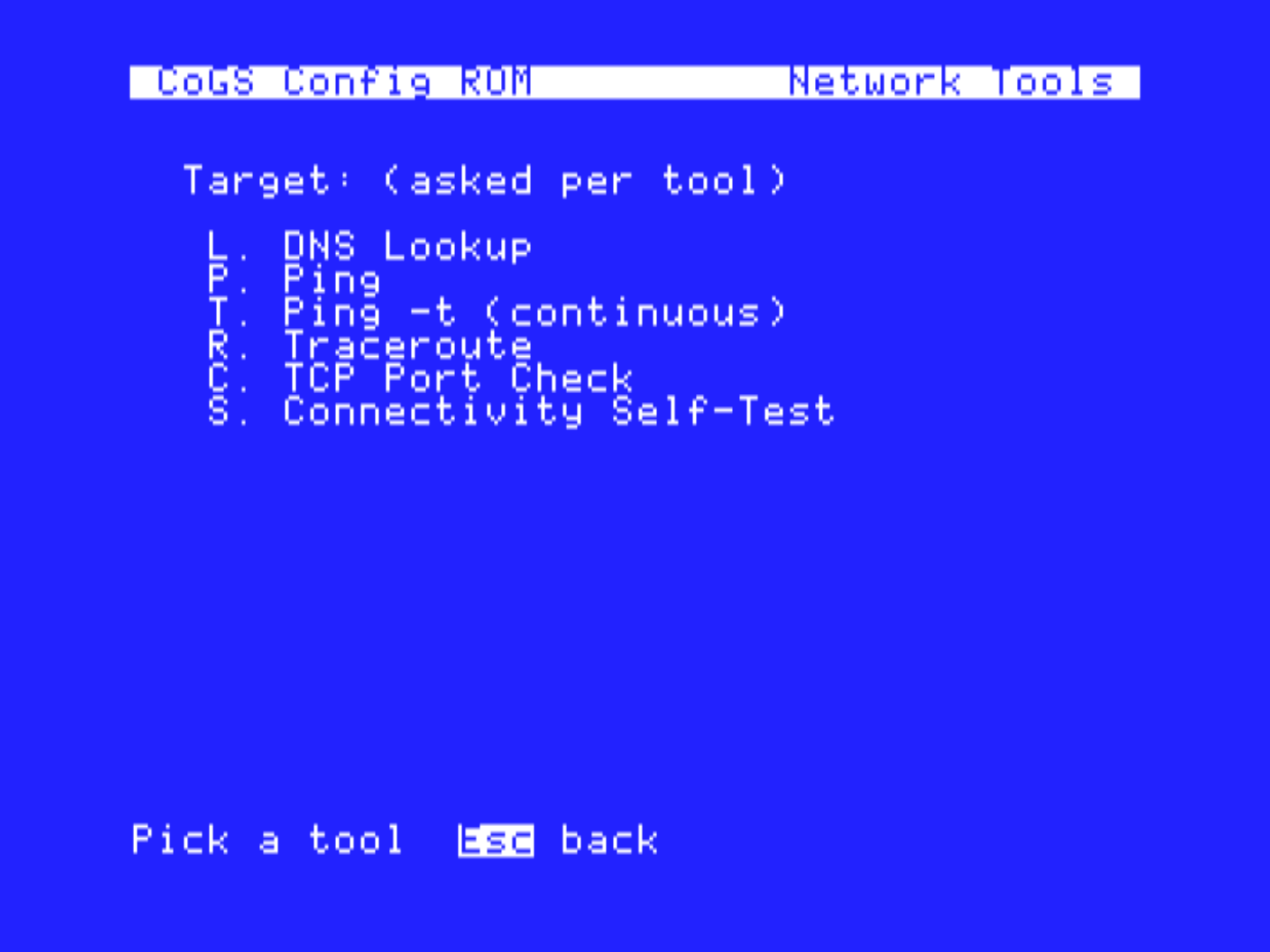

Network Tools menu in the config ROM: DNS lookup, ping, continuous ping, traceroute, TCP port check, and the connectivity self-test

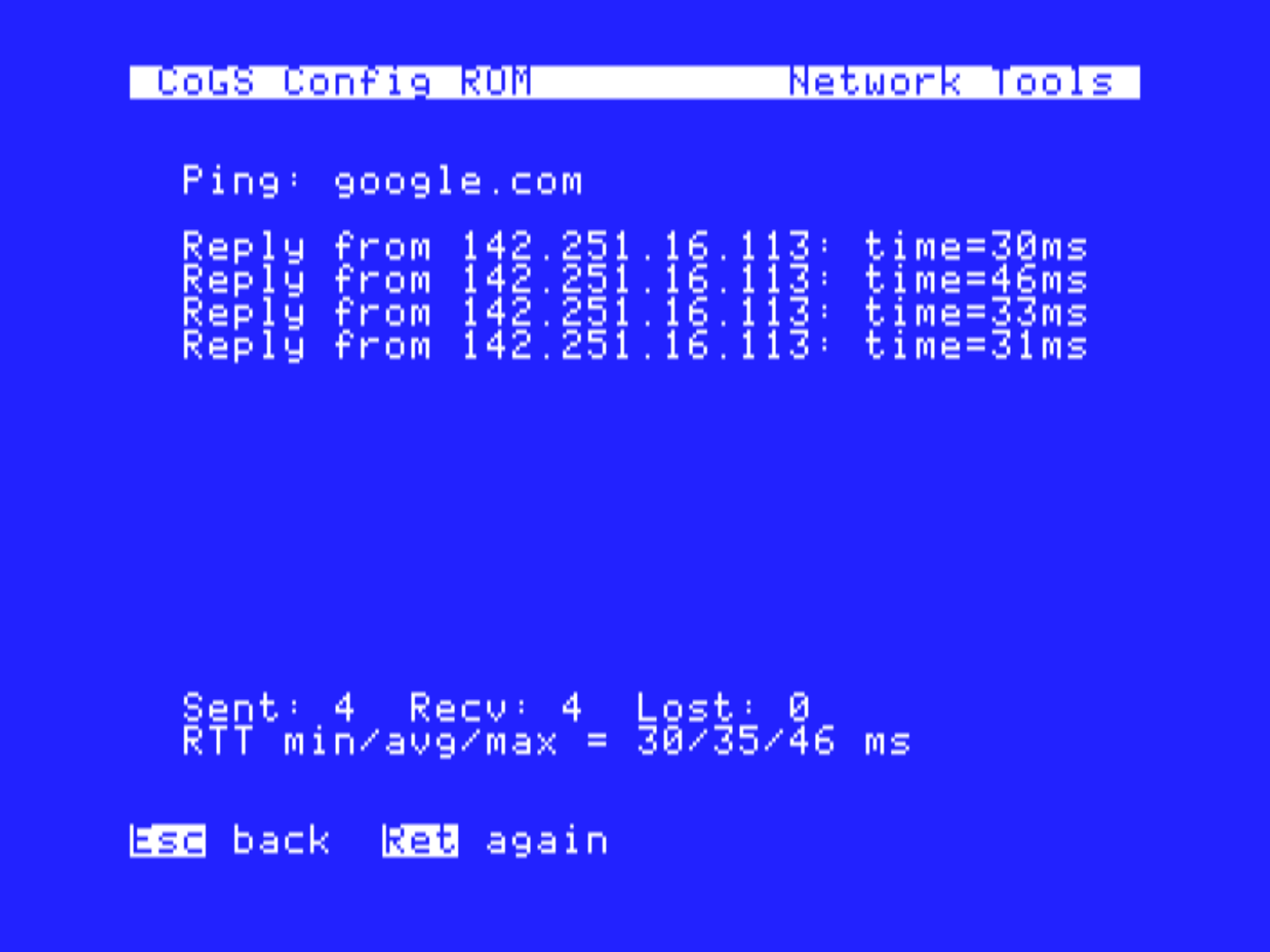

Ping google.com from the config ROM: five replies with times and a summary

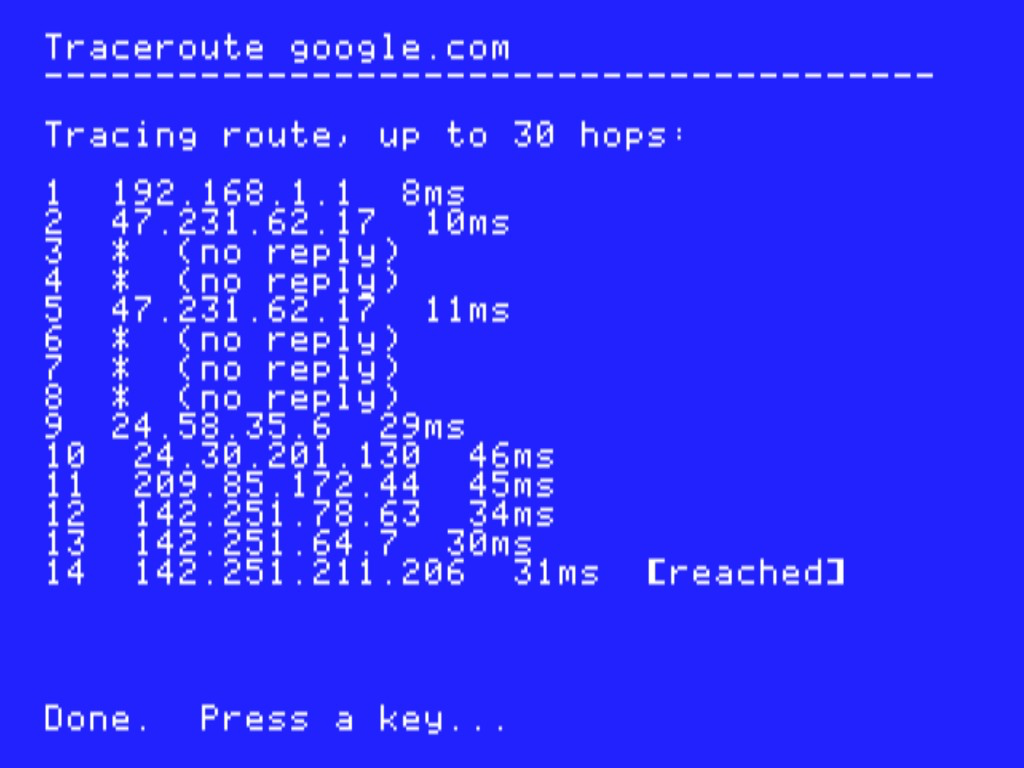

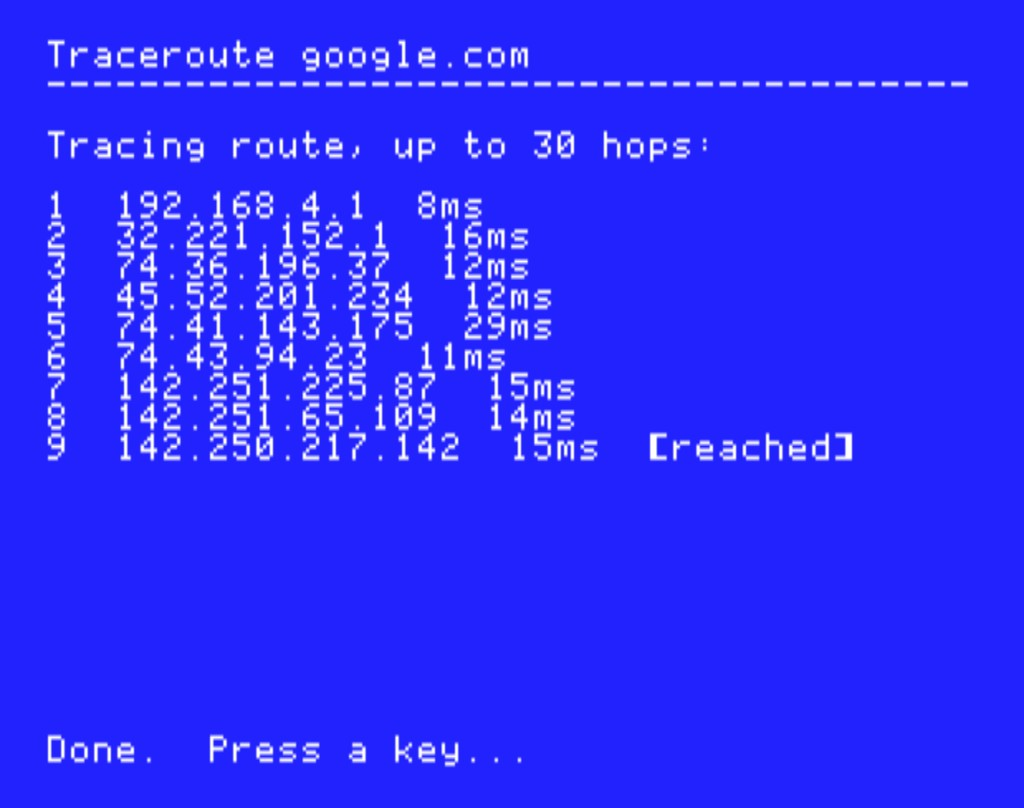

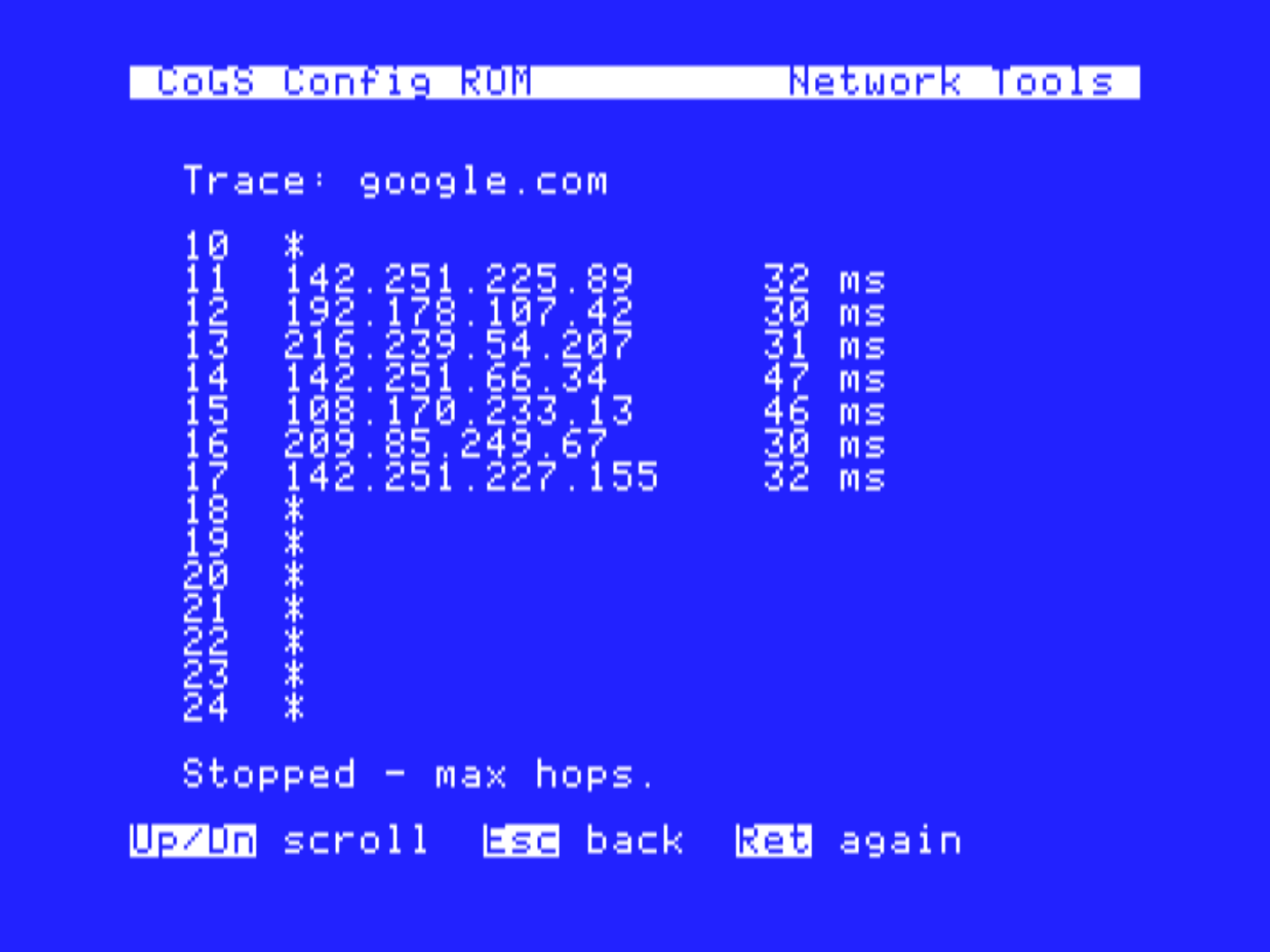

Traceroute to google.com from the config ROM, hop by hop with round-trip times

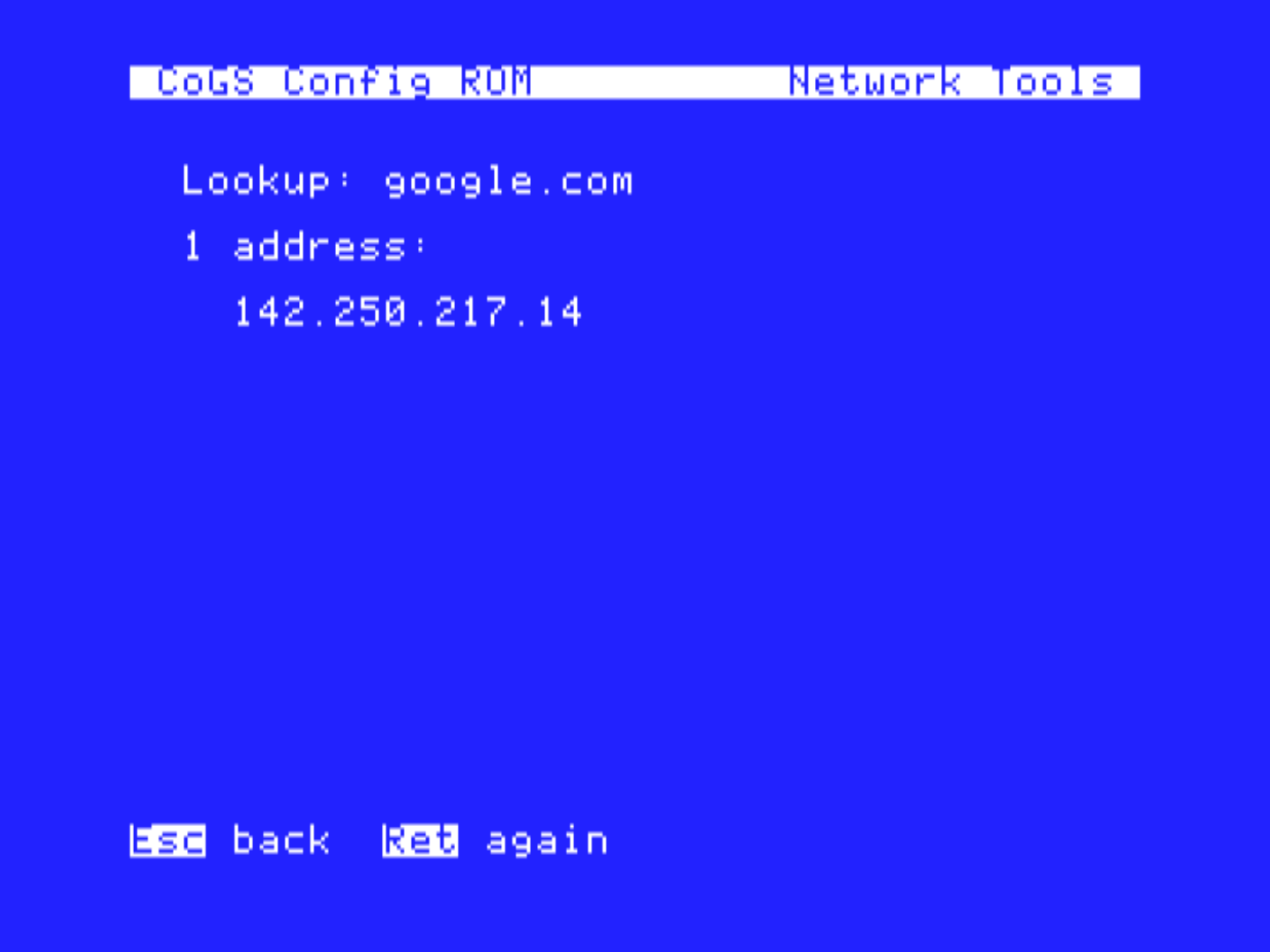

DNS lookup of google.com from the config ROM

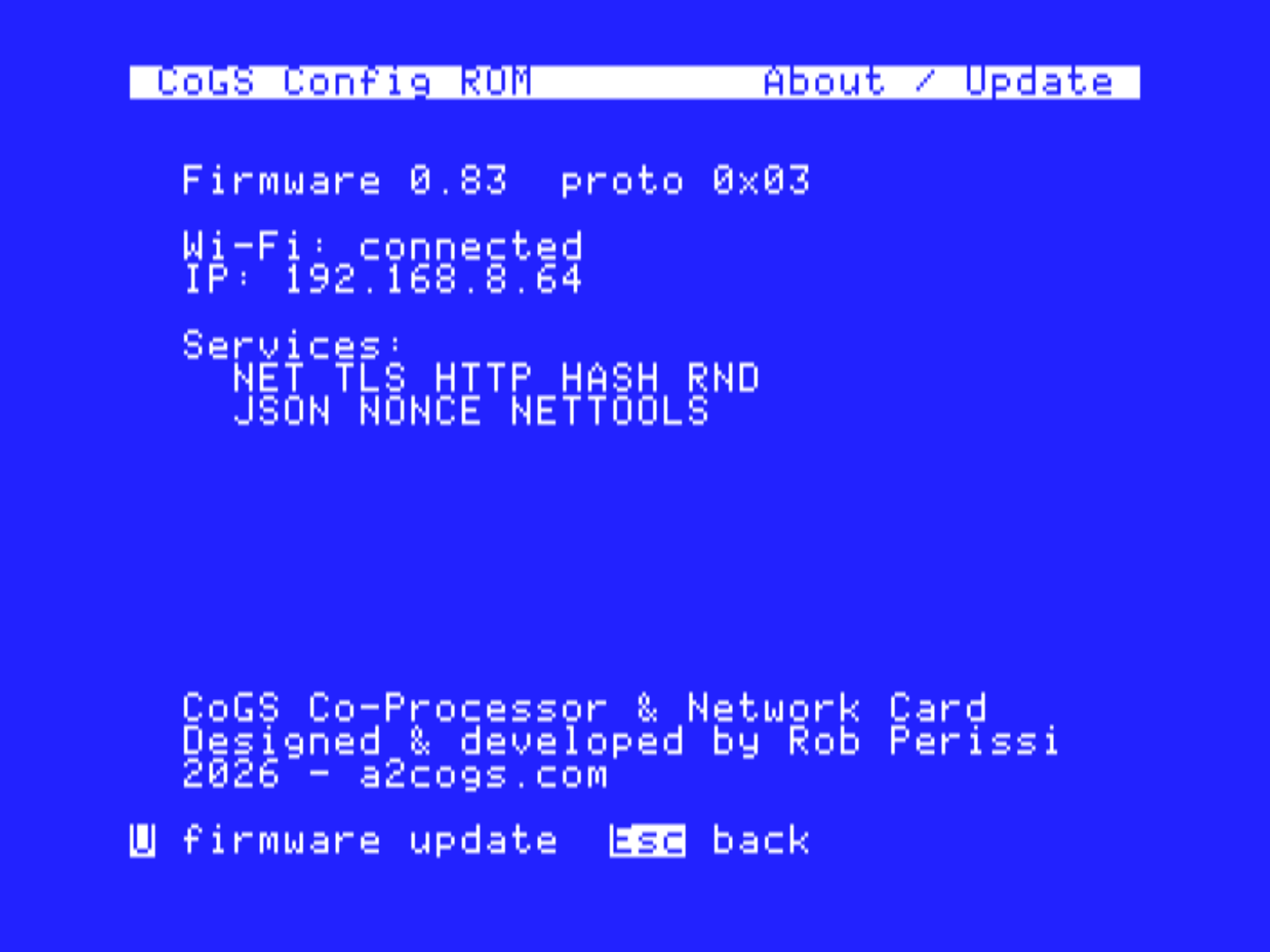

About / Update: firmware and ROM versions, card serial, and the U key to check a2cogs.com for updates

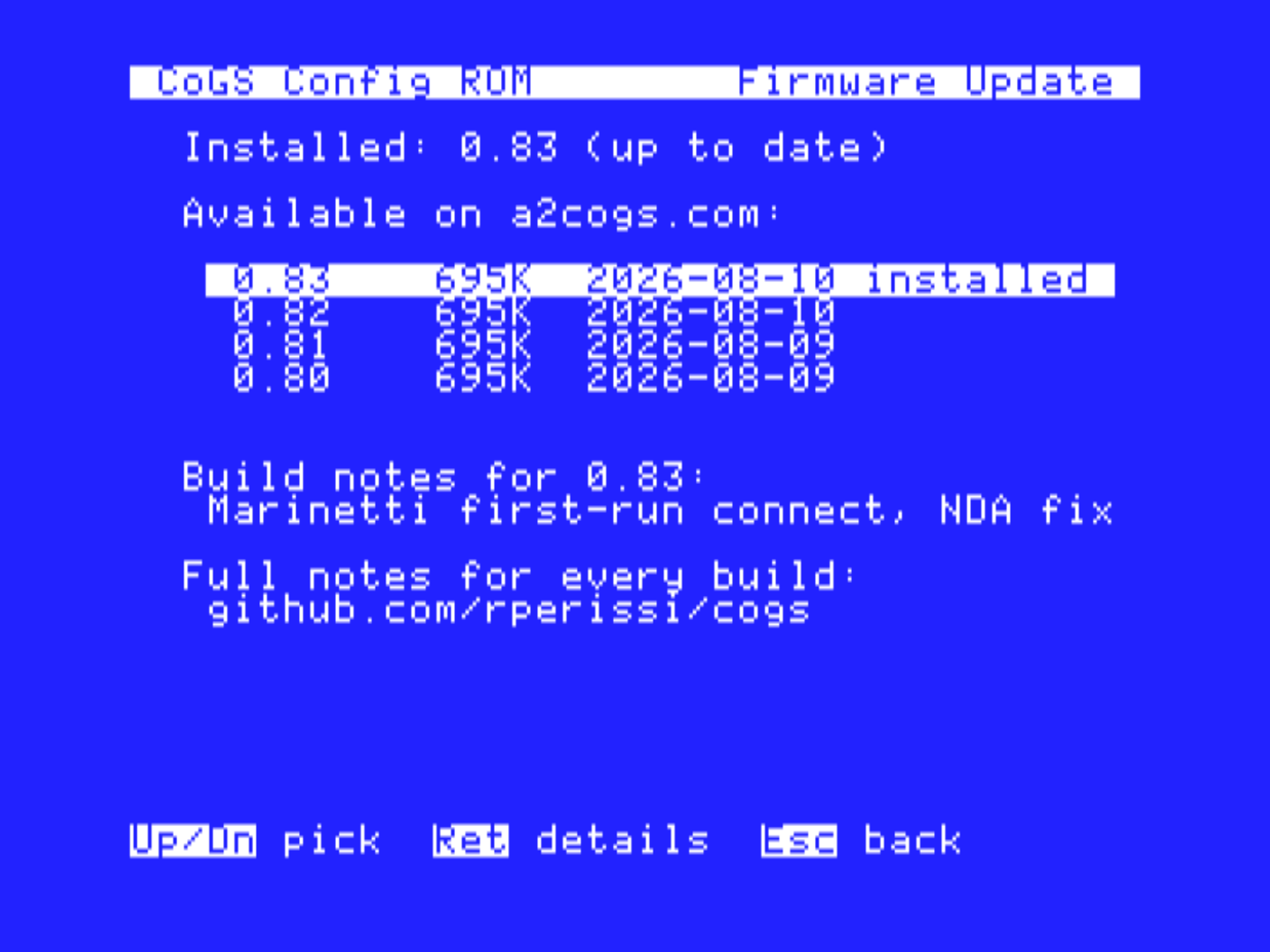

Firmware update list fetched from a2cogs.com: versions with dates and build notes, pick one to download and flash

A library on the wire

The card ships pointed at the index at a2cogs.com: 515 disk images, every one boot-tested, searchable and mountable right from the machine. The GS side is built on the collection curated at What is the Apple IIGS?, credited on every entry. Total Replay streams directly from its own GitHub release, so its 400+ 8-bit titles ride along, always the latest version.

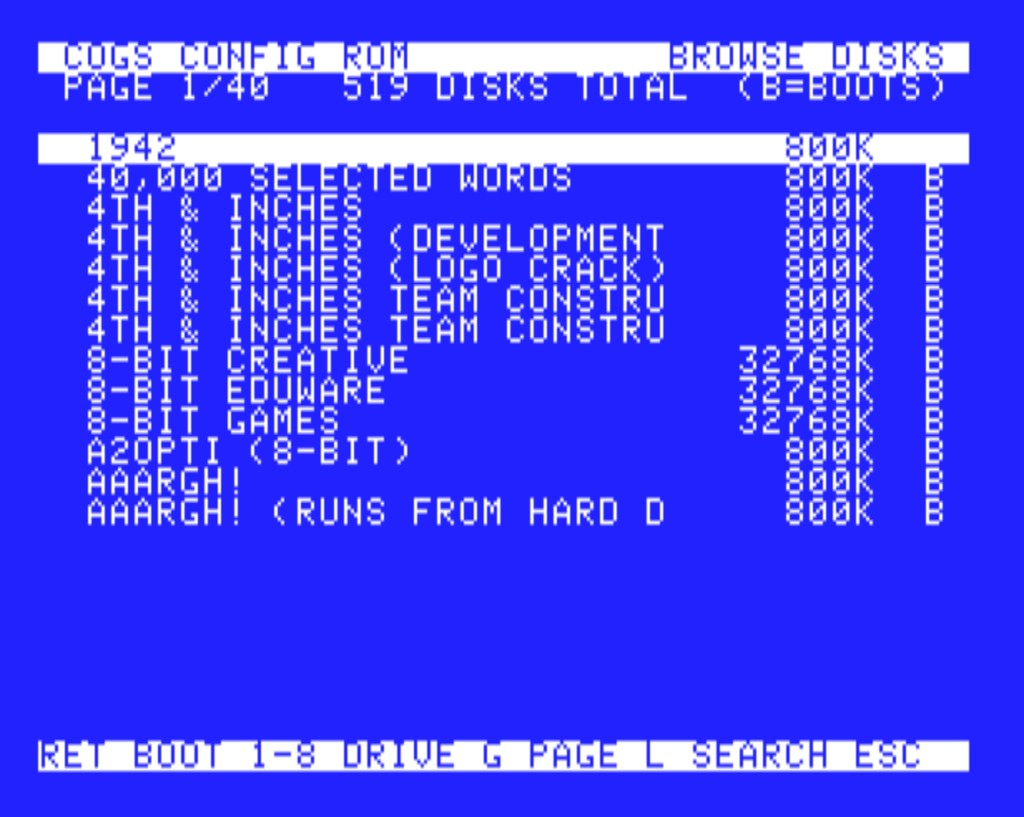

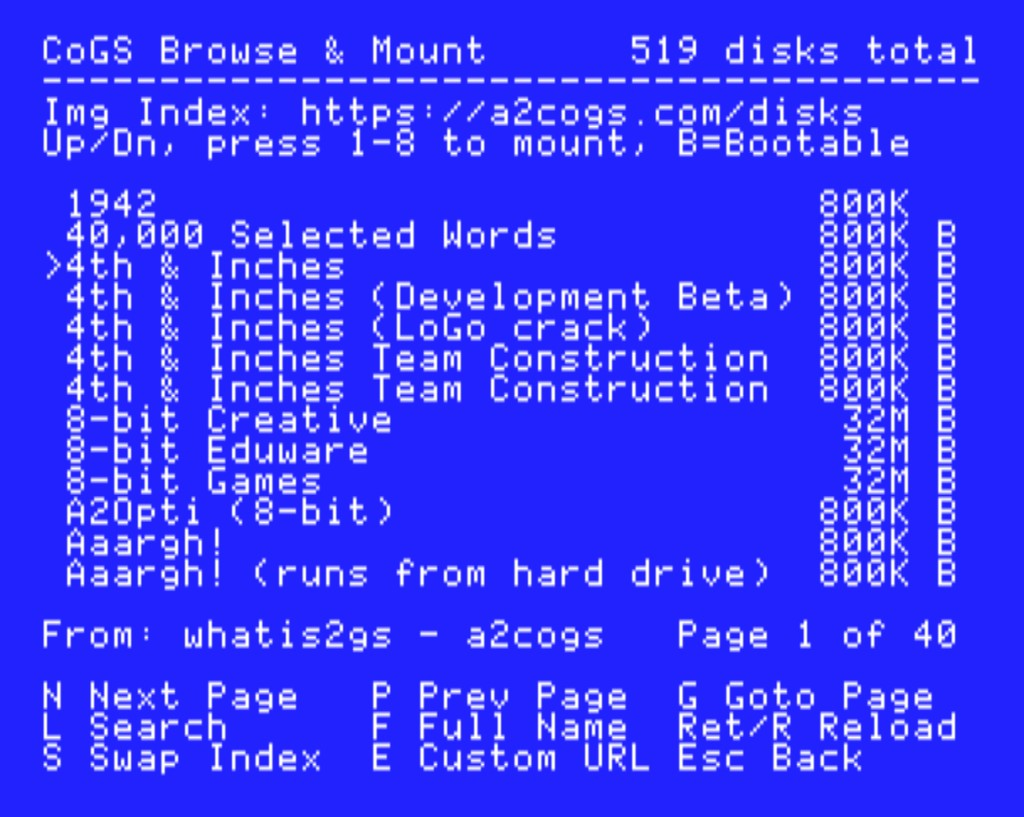

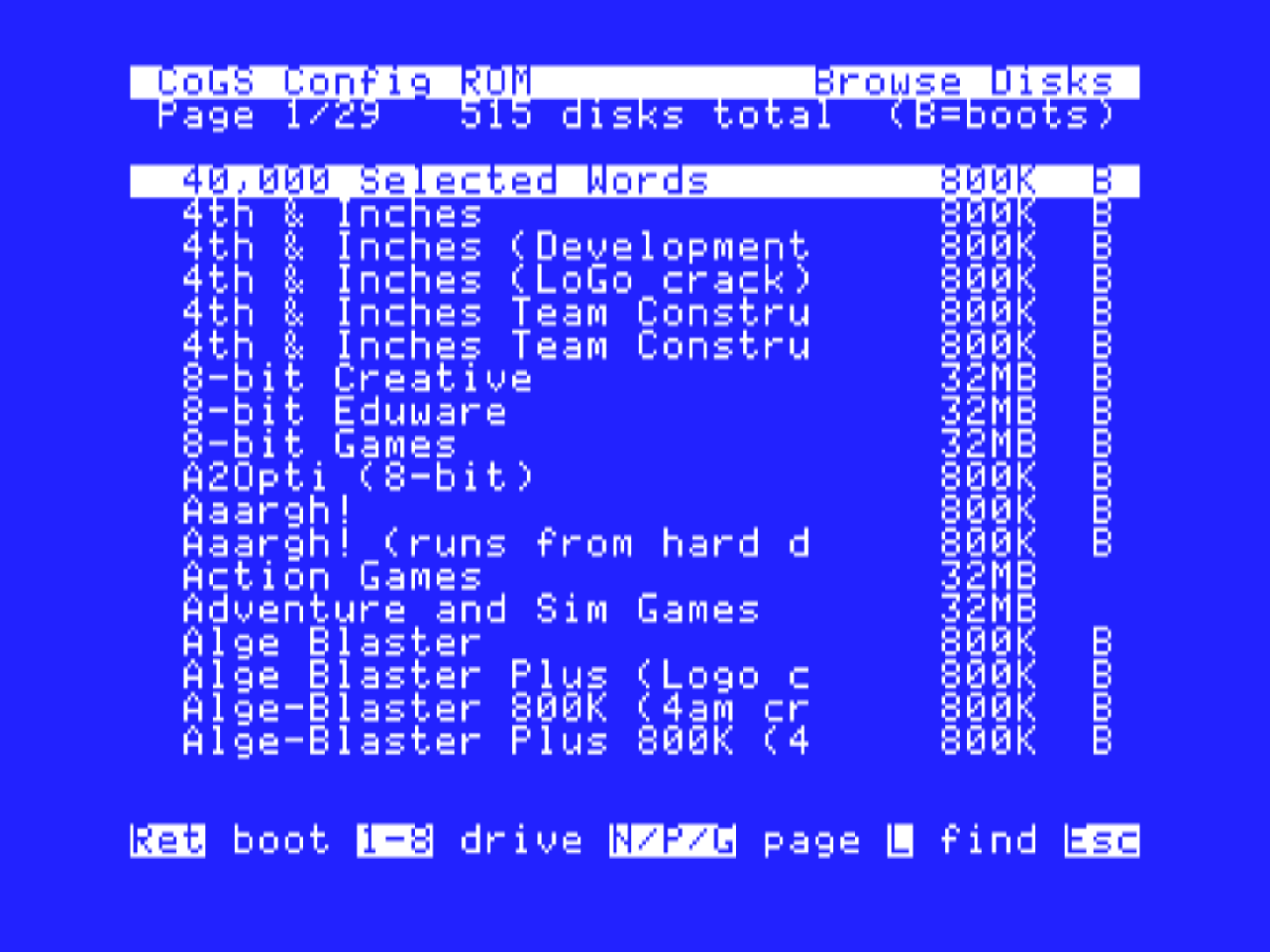

Browsing the 515-disk index: paginated and searchable, with bootable images flagged B, boot on Return or assign to a drive

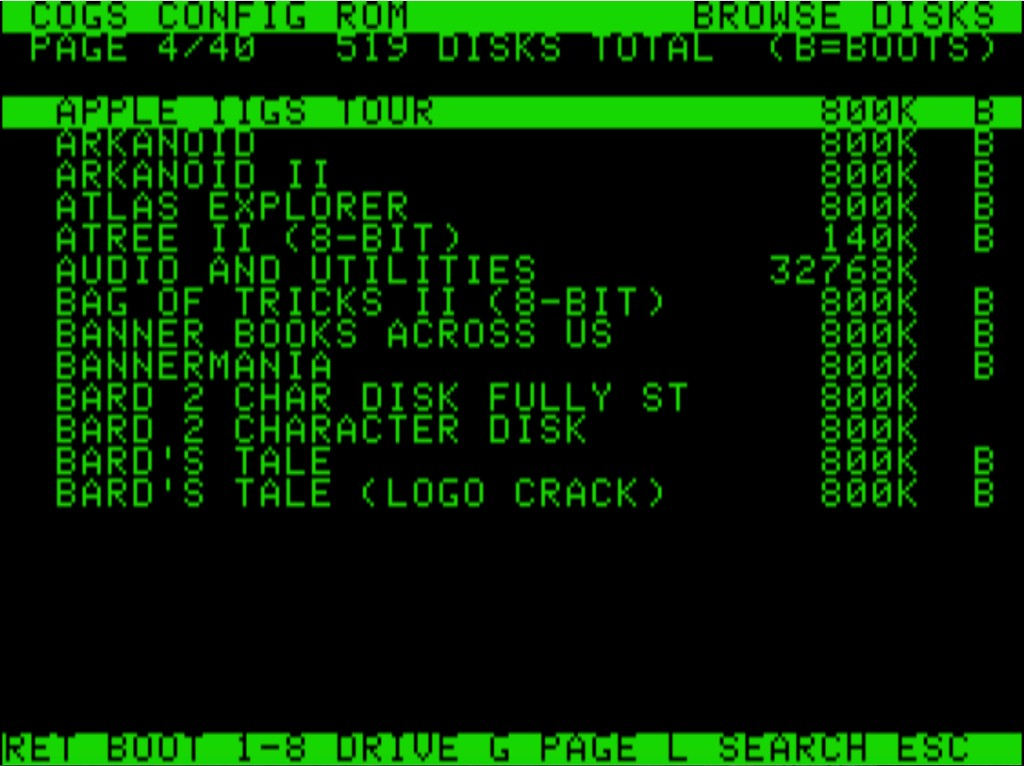

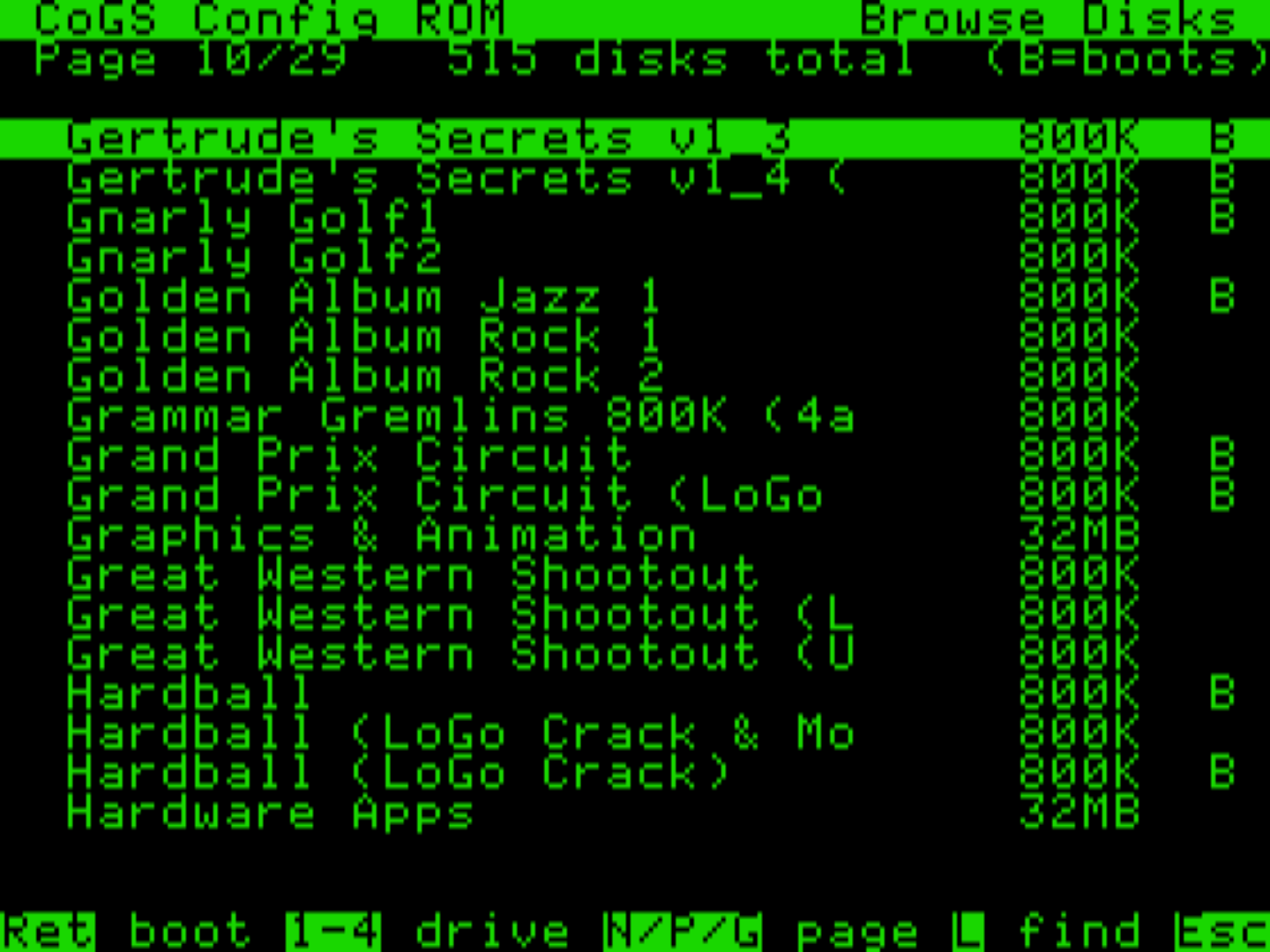

The same 515-disk index browsed from an Apple //e, green phosphor and all

Your library too: CoGS Image Manager

Your own images work the same way. Run the CoGS Image Manager on a Mac (Windows planned), point it at a folder of .po / .hdv / .2mg images, and click Start Sharing. Every CoGS card on the LAN can then scan for the share from the Image Source page and browse it like the a2cogs catalog: bootable tags from real boot-block probing, search, and full read/write, so your Apple II saves straight back to the folder on your desktop. No more shuffling floppies or transfer utilities; just keep a folder.

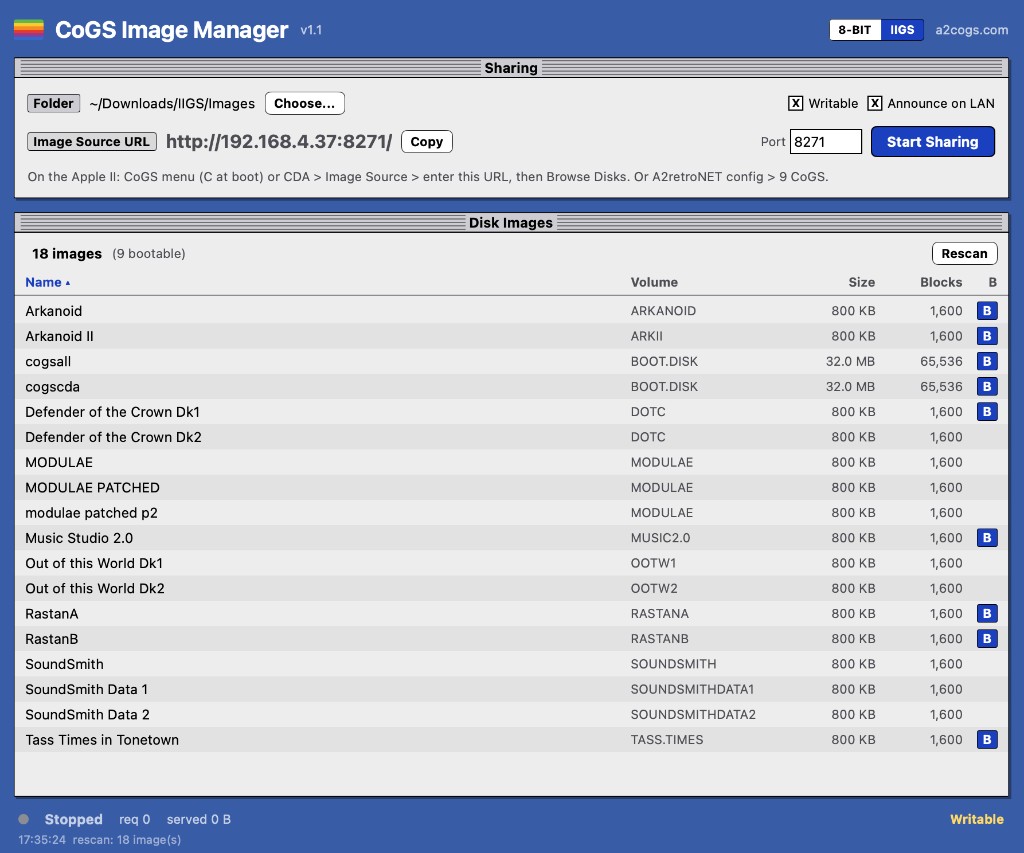

CoGS Image Manager in the IIGS theme: a shared folder of disk images with bootable tags, volume names, sizes, and the LAN image source URL ready to copy

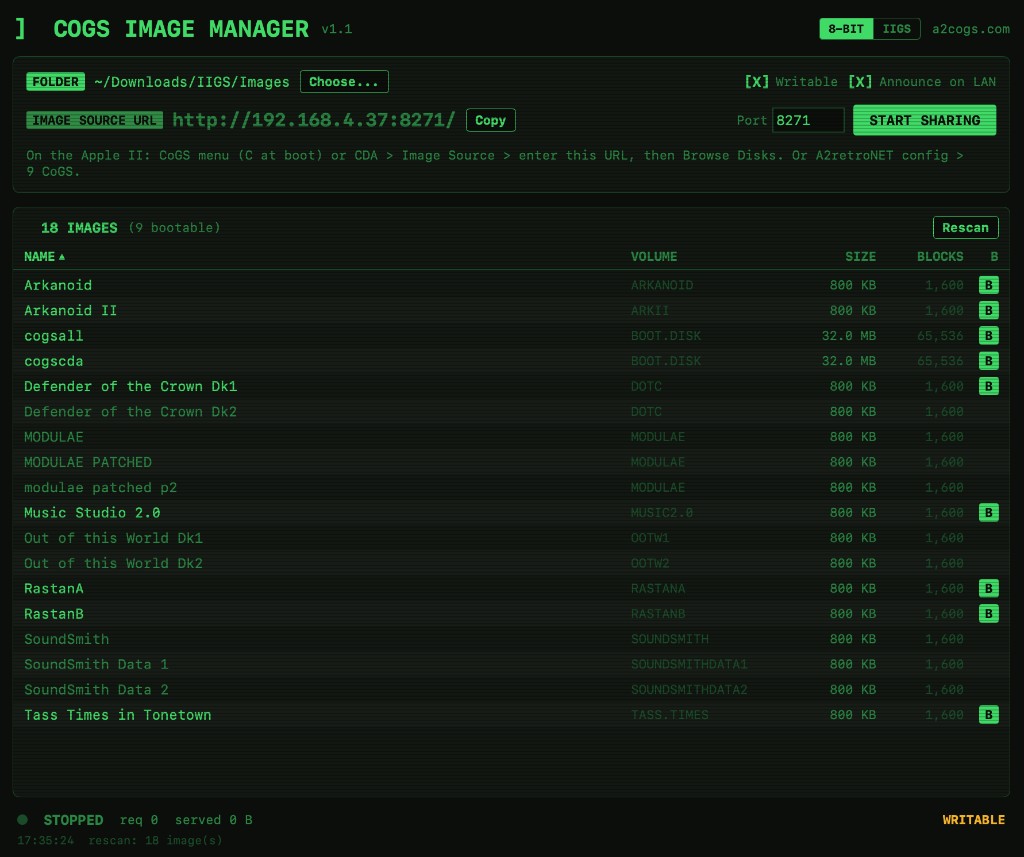

The same share in the 8-BIT green-phosphor theme
Sharing on the LAN today

What it unlocks

So what can my Apple do now?

With a secure link to the modern web and a co-processor on board, the question stops being “can it?” and starts being “what will you build?” A couple of these are ours to finish; the rest are possibilities, most of them yours to write.

Available

Talk to AI

GS-LLM, our streaming LLM chat client, plus room for an AI dungeon master for text adventures, on-the-fly translation, or a button that summarizes any web page to the screen.

Live data, on the desktop

Weather, stock tickers, sports scores, headlines, transit times — pulled fresh from real APIs into a desk accessory.

Real messaging

Email over genuine TLS, IRC and chat bridges, a Mastodon client, an RSS reader. The GS back on the live network.

Available

Mining & crypto

GS-Miner, our Bitcoin miner getting the hardware nonce scanner, plus hashing utilities and a password vault seeded by true randomness.
Available

Cloud & sync

Pull files and updates from a web server or GitHub, back up to the cloud, and mount or boot fresh disk images straight off the network — no copying to local storage first.

Play with the world

Post high scores to an online leaderboard, turn-based multiplayer, daily shared puzzles delivered over the wire.

Secure by default

TOTP two-factor codes (the card keeps real time), signed requests, and downloads that are certificate-checked on the card.

Whatever you dream up

It is a slot card with an HTTPS pipe and a toolbox. This community has always done the rest. Possibilities are endless.

For developers

Build your own app for the card

CoGS is not a black box. The building blocks are open: a documented protocol that runs over the slot, plus client code so your program can open a connection, fetch over HTTPS, hash data, or pull true randomness in a few calls. Call it an API if you like, but the point is the opposite of a cloud service you rent. The card is right there in the machine, and it is yours.

Protocol spec on GitHub (coming soon) Client library & headers (coming soon) Example apps on GitHub

Develop without the hardware. A virtual CoGS card runs inside the Ample emulator (and MAME), so you can write and test apps with no card on your desk. It links the same firmware core the real card runs, with live networking through your Mac (DNS, TCP, HTTP, JSON) and a LAN bridge so Marinetti and IP65 software reach the real network. One command sets it up, and the same binary then runs on real hardware. TLS and HTTPS happen on the card’s crypto, so in the emulator use plain HTTP or a local TLS proxy.

Designed for CGS

A mark we want to offer for software built to use the card, so apps that light up your Apple II with modern powers are easy to spot. The seed of a full suite of modern Apple II software, written by the community, running on the machine itself.

The constraint

Apple II Forever.

We mean it as an engineering constraint, not a slogan.

CoGS refuses to become the brain. It would be easy, and wrong, to build a card that runs the program on its own fast processor and hands the Apple II a finished picture. That is not an Apple II anymore. That is a modern computer in a beige case.

CoGS is a co-processor. It does only the work the machine genuinely cannot: it terminates TLS, it hashes, it makes true randomness, it walks JSON, it grinds nonces. In every case the Apple II decides what to ask for, runs the program, and owns the screen and the user. The card is a tool on the bench, not a hand on the wheel.

The story

It started with apps, not a card.

It began with building things for these machines: a Bitcoin miner, then a modern LLM chat client for the Apple IIGS. Each one ran into the same wall: the modern internet's cryptography simply can't run on a 1 MHz 6502 or a 2.8 MHz 65816. There are already good answers to that. Some run the real program on another computer and leave the Apple as a terminal. Others, like the excellent FujiNet, put a dedicated device on the disk port that has been terminating TLS for vintage machines for years, with the Apple still running the show. Offloading the hard cryptography is the right idea, and CoGS stands squarely on that prior art. What I wanted was a different shape for it: not a helper beside the machine but a true card inside a slot — bus-native, mapped right into the machine so the program can call it in a few register writes. The Apple still owns the program, the screen, and every decision. The card just does the parts the silicon of 1986 never could.

What made it feasible was modern tooling. Designing the protocol, writing the firmware, and bringing up the clients with AI-assisted development in Cursor turned what would once have been years into an iterative, almost playful loop — sketch an idea in the morning, have it answering on real silicon by the afternoon. That speed is the point: it unlocks the imagination to actually ship working software for a forty-year-old computer.

So much of the hard groundwork was already laid by this community — the bus interface, the TCP/IP stacks, the toolchains — that the next step felt obvious: build one card that drops into any slotted Apple, with a whole suite of capability on board, to empower the next wave of software and keep our favorite computers alive long into the 21st century (and beyond).

Built on shoulders

Open source. Open hardware. Community.

A2Pico

The open bus-interface platform: concept by Glenn Jones and Oliver Schmidt, firmware by Oliver Schmidt, hardware by Ralle Palaveev — the genuinely hard part of meeting Apple II slot timing. CoGS builds directly on it.

FujiNet

Has terminated TLS and served HTTPS and JSON on vintage machines for years over the SmartPort bus. Its JSON device directly inspired JSON_GET, and the same A2Pico carrier CoGS builds on can host FujiNet too with softSP. Prior art we respect, and partly share a platform with.

Marinetti & ORCA/C

Marinetti, ORCA/C, and Golden Gate keep the IIGS programmable in 2026. CoGS bridges into the Marinetti ecosystem so existing software just works.

What is the Apple IIGS?

The curated IIGS disk-image collection the a2cogs index is built on. The definitive GS library, curated by Alex Lee since 1996, rebuilt and rehosted at whatisthe2gs.com.

Total Replay (4am)

The 8-bit arcade collection the card streams directly from its own GitHub release, always the latest version.

Build the firmware

It runs today on a Raspberry Pi Pico 2 W fitted to an open A2Pico carrier. The protocol lives in a written spec that the firmware follows — now including the SmartPort/ProDOS block layer for network disks — with docs that walk through how it all works. Source, spec, and clients go up on GitHub at launch, with prebuilt firmware and the bootable GS disk on the releases page.

cd firmware && cmake -B build -G Ninja \
  -DPICO_BOARD=pico2_w -DCMAKE_BUILD_TYPE=Release
cmake --build build   # -> cogs.uf2
Source on GitHubcoming soon Spec & docs on GitHubcoming soon Contributing guide on GitHubcoming soon

How can I get one?

Built to run on hardware you can already get.

CoGS runs on parts you can already get: an open A2Pico carrier (the proven Apple II slot card) with a Raspberry Pi Pico 2 W on it for Wi-Fi. The purpose-built CoGS card, with extras like wired Ethernet, is coming soon.

Latest firmware v0.89streaming network disks · verified on stock and accelerated machines · 515-image index · Marinetti bridge · over-the-air updates · secure stack · card services · USB Mac Bridge prototypes for no-radio boards

The board

The software

A2Pico Multi-Function Card Available at JCM Firmware Download cogs.uf2 · coming soon Raspberry Pi Pico 2 W to add WiFi capability Bootable GS disk cogsall.2mg · desk faces + Marinetti · coming soon CoGS Card purpose-built · coming soon USB Mac Bridge (prototype) no-radio Lite / A2Pico · firmware 0.89

Note: A2Pico boards come with a Pico W. You'll need to desolder and solder on a Pico 2 W for Wi-Fi.

Open source: the firmware, spec, GS software, and downloads go public at launch. You only ever flash once; after that the card can flash future firmware updates directly from CoGS Config on the Apple (and over the air from a2cogs.com).

Notify / Questions

Want to know when the CoGS card is available or have any questions?
